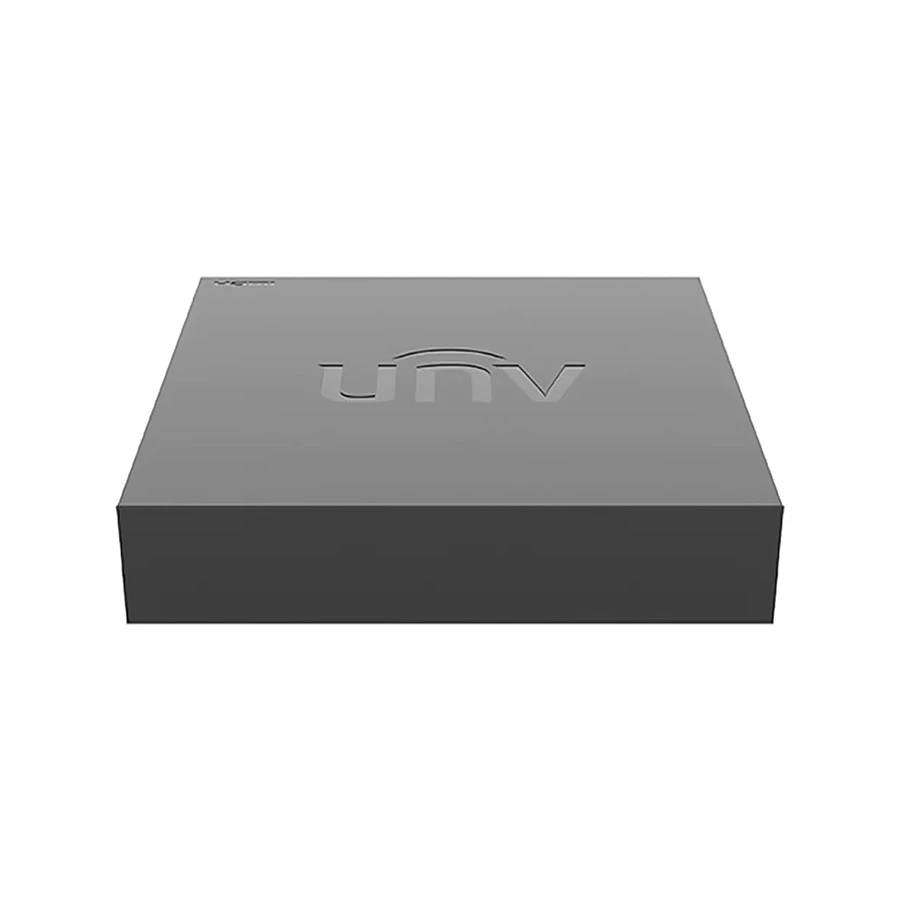

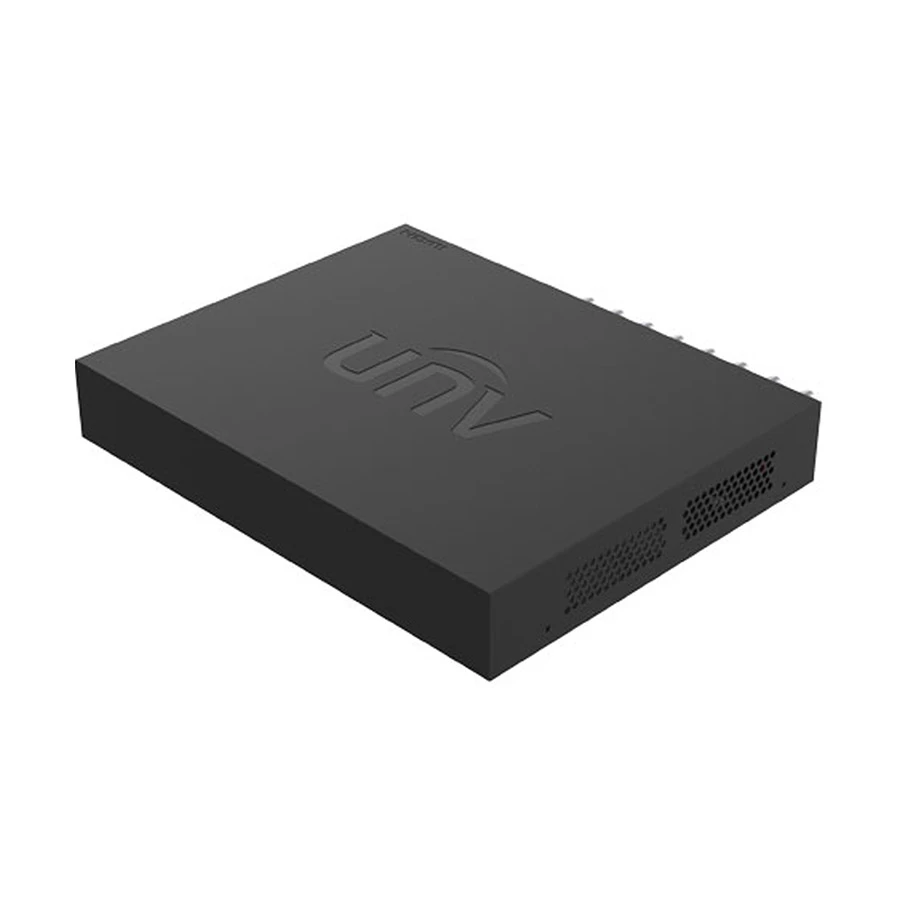

Uniview XVR301-16F 16 Channel 1080P XVR
Quick Details
- Number of Input Channel - 16 Channel
- Video Recording Res. - 1080P Lite/720P/D1
- Dual Stream Support - Yes
- Number HDD Interface (SATA) - 1 SATA
- Max. Storage Support - 6TB
- Color - Black
8,500৳
0.0৳
| Brand | Uniview |
| Model | XVR301-16F |
| Type | 16 Channel 1 SATA XVR |
| SATA | 1 SATA interface |
| Capacity | Up to 6TB for each HDD |
| Analog Video Input | 16-ch, BNC |
| IP Video Input | 2-ch (only IP up to 18ch), each channel up to 8MP |
| Supported Analog Camera Types | Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input |
| Audio Compression | G.711U |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Live view display | HDMI/VGA: 1/4/6/8/9/16/25 |
| Synchronous Playback | HD:16-ch SD:16-ch |
| FTP/Schedule/Event Snapshot | Schedule snapshot is not supported 16-ch snapshot, up to 704*576 resolution |
| Recording Resolution | 1080P Lite/720P/D1 |
| Recording Frame Rate | Main stream: 1080P Lite@12fps | 720P@15fps Sub stream: D1@12fps | D1@15fps |
| Audio Sample Rate | 8KHz,16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Capability | Analog:16x 1080P Lite@12, 16x 720P@15 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30, 8 x 720P@30,16 x D1@30 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP |
| Incoming Bandwidth | 24Mbps (Up to 56Mbps after all-analog channel conversion) |
| Outgoing Bandwidth | 64Mbps |
| Web Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Remote Users | 128 |
| General Alarm | Motion detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| VCA Detection | Ultra Motion Detection(UMD) for analog:8-ch |
| VCA Search | Behavior Search |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Power | 12V DC Power Consumption: ≤ 10 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Certification | UL/CE/FCC /RoHS /WEEE |
| Warranty Details | 1-Year Brand Warranty |
Description
Uniview XVR301-16F 16 Channel 1 SATA XVR
Uniview XVR301-16F is a robust 16-channel XVR system designed for efficient and practical surveillance applications. Equipped with a single SATA interface supporting up to 6TB per HDD, it ensures ample storage capacity for extensive video recordings. Featuring 16 analog video inputs through BNC connectors and supporting 2 IP video inputs, each accommodating up to 8MP, this XVR provides comprehensive coverage for security monitoring. Display options include VGA and HDMI outputs with resolutions like 1920x1080p/60Hz, delivering clear and detailed visuals. The recording resolution options include 1080P Lite, 720P, and D1, maintaining optimal video quality with frame rates such as 1080P Lite at 12fps and 720P at 15fps for the main stream. The substream operates at D1 with frame rates of 12fps and 15fps.
Audio features include an 8KHz sample rate and 16-bit per channel, coupled with a bit rate of 64Kbps per channel. The system ensures a steady incoming bandwidth of 24Mbps, expanding to 56Mbps after converting all analog channels. With an outgoing bandwidth of 64Mbps, it supports smooth data transmission. The Uniview XVR301-16F accommodates up to 128 remote users and comes with a 1-year brand warranty, offering reliability and simplicity for your surveillance needs.
