GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor
Special Price:
7,200৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
09512
Quick Details
- Model: GIGABYTE GA-J1800M-D3P
- Intel Dual-Core Celeron J1800 SoC (2.41 GHz)
- 2 x DDR3 DIMM Dual Memory
- 1 x PCI Express x16 slot, running at x1
- 1 x Trusted Platform Module (TPM) header
7,200৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| Motherboard | |
| Chipset | Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) |
| Supported Processors | Built in with an Intel® Dual-Core Celeron® J1800 SoC (2.41 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 1 MB Cache |
| Max Memory | 2 x DDR3 DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/-L 1333 MHz memory modules Support for non-ECC memory modules |
| Onboard Video | Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 2560x1600 1 x HDMI port, supporting a maximum resolution of 1920x1080 |
| Onboard Audio | Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
| Onboard LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Warranty | 3 Years |
Description
GIGABYTE GA-J1800M-D3P Motherboard with Built In 2.41Ghz DDR3 Celeron Processor
- Built-in Intel® Celeron™ J1800 (2.41 GHz) Dual-Core processor
- GIGABYTE Ultra Durableâ„¢ Technology
- Dual channel DDR3/-L UDIMM slot support
- Audio Noise Guard with High Quality Audio Capacitors
- All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
- LAN with high ESD Protection
- HDMI, D-SUB ports on rear panel
- GIGABYTE On/Off Charge for USB devices
- PCIe and PCI interface for wide-range expansion card selections
- USB
- Integrated in the SoC:
- 1 x USB 3.0/2.0 port on the back panel
- SoC + GL850 USB 2.0 Hub:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 2 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 2 x serial port headersŠŠ
- 1 x Trusted Platform Module (TPM) header
- 1 x Clear CMOS jumper

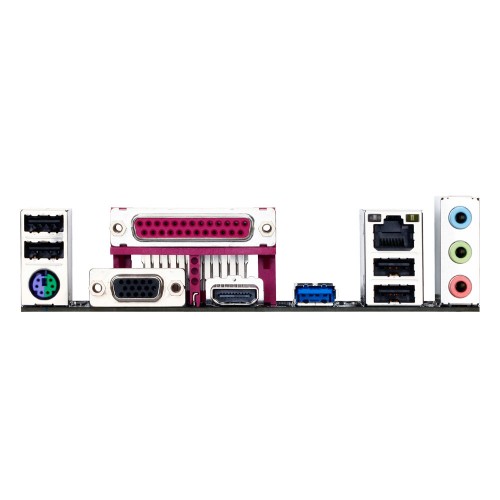

- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 1 x parallel port
- 1 x USB 3.0/2.0 port
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
- I/O Controller
- iTE I/O Controller Chip
03 Years Warranty
