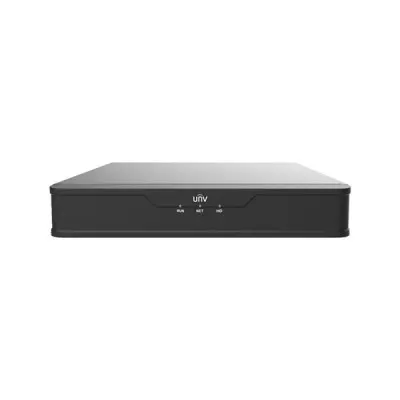

Uniview NVR301-16S3 16 Channel 1 SATA NVR
Special Price:
9,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
06983
Quick Details
Model: NVR301-16S3
Supports up to 16 IP camera inputs
Ultra 265 / H.265 / H.264 video compression to save storage
HDMI (up to 4K) + VGA output for live view and playback
Single SATA port supporting HDD up to 8 TB
9,500৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| Model | NVR301-16S3 |
| IP Camera Inputs | 16 channels |
| Video Compression | Ultra 265 / H.265 / H.264 |
| Max Recording Resolution | Up to 4K (supports 5 MP / 4 MP / 3 MP / 1080p / etc.) |
| Video Output | 1 × HDMI (up to 3840×2160) + 1 × VGA |
| Network Interface | 1 × RJ45 10/100M self-adaptive Ethernet |
| Bandwidth Input / Output | 64 Mbps (in), 48 Mbps (out) |
| Storage | 1 × SATA HDD, up to 8 TB |
| USB Ports | 2 × USB 2.0 (rear panel) |
| Audio Output | 1-channel audio output (3.5 mm) |
| Supported Protocols | ONVIF, RTSP, Uniview protocols |
| Remote Access | Web, CMS software, smartphone app, cloud upgrade supported |
| Power Supply | 12 V DC |
| Operating Conditions | –10 °C to +55 °C, humidity ≤ 90% RH (non-condensing) |
| Dimensions / Weight | 260 × 240 × 46 mm; ~0.98 kg (without HDD) |
Description
The Uniview NVR301-16S3 is a reliable, mid-range network video recorder designed for home, office, or commercial surveillance setups that require monitoring up to 16 cameras. It supports Ultra 265, H.265 and H.264 compression, which helps reduce storage and bandwidth usage while retaining good video quality. The NVR can record up to 4K (or 5 MP/4 MP/1080p etc.) resolution streams — making it compatible with a wide range of IP cameras. With both HDMI (4K-capable) and VGA outputs, you can connect a monitor for live view or playback. It uses one SATA drive (up to 8 TB) for storage, and two USB ports allow easy backup to external drives. Network connectivity is straightforward via Ethernet, and the device supports standard protocols like ONVIF and RTSP — meaning you can use most compatible cameras. Remote access via web, mobile app, or CMS software gives you flexibility to monitor feeds from anywhere. Overall, the NVR301-16S3 offers a solid balance of channel capacity, resolution support, compression efficiency, and storage flexibility — suitable for small to medium-scale surveillance systems.
