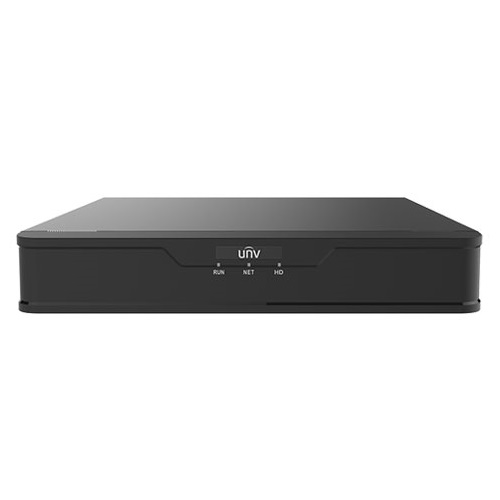

Uniview NVR301-08S2-P8 8 Channel PoE NVR
Quick Details
- Model: NVR301-08S2-P8
- Inputs: 8 IP camera
- Up to 5MP camera supported
- Storage: 1 SATA HDD up to 8TB
- Third-party IP camera supported
10,300৳
0.0৳
| System | |
| Operating System | Linux system |
| Audio and Video | |
| IP Camera Input | 8 Channel |
| Display | |
| Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Decoding Capacity | Ultra 265/H.265/H.264 |
| Recording | |
| Resolution | 6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Video Detection And Alarm | |
| Video Detection | Face detection, Intrusion detection, Cross line detection, Audio detection |
| Playback And Backup | |
| Sync Playback | 8 Channel |
| Third Party Support | |
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network | |
| Interface | 1 RJ45 |
| Ethernet Port | 10/100M, self-adaptive ethernet interface |
| PoE | 8 Channel |
| Network Function | Incoming Bandwidth: 50Mbps Outgoing Bandwidth: 40Mbps |
| Maximum User Access | Remote Users: 128 |
| Storage | |
| Internal HDD | 1 SATA interface |
| HDD Mode | Up to 8TB |
| Auxiliary Interface | |
| USB | 2 x USB2.0 |
| Power | |
| Power Supply | 52V DC |
| Power Consumption | ≤9 W (without HDD) |
| Component Environment | |
| Operational Conditions | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Construction | |
| Dimensions | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") |
| Net Weight | 1.1kg (2.43 lb) |
| Warranty | |
| Manufacturing Warranty | 1 year Warranty |
Description
Uniview NVR301-08S2-P8 8 Channel PoE NVR
The Uniview NVR301-08S2-P8 8 Channel PoE NVR support Ultra 265/H.265/H.264 Video format. This NVR features 8 independent 100 Mbps PoE network interfaces. This NVR features 8 channel video recording capacity. This device has 8 independent network interfaces, and it's plug and play device. The NVR301-08S2-P8 8 Channel PoE NVR supported other Third-party IP cameras with ONVIF conformance: Profile S, Profile G, and Profile T. The Uniview device has 1-channel HDMI and 1-channel VGA output simultaneous up to 5MP resolution recording. This device has a storage capacity of up to 8TB with a single SATA HDD slot. Its offers 1x HDMI and 1x VGA. HDMI supports 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60H and VGA supports 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz Decoding Capacity. In this NVR, the recording resolution is about 5MP/ 4MP/ 3MP/ 1080p/ 960p/ 720p/ D1/ 2CIF/ CIF. This device's Firmware can be upgraded by the cloud. This device follows the protocol: P2P, UPnP, NTP, PPPoE, and DHCP. Uniview NVR301-08S2-P8 comes with 50mbps Incoming Bandwidth and 40Mbps Outgoing Bandwidth and 128 Remote connections.
