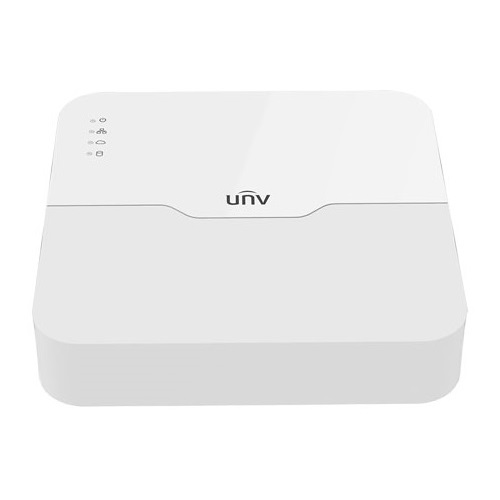

Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR
Quick Details
- Model: NVR301-04LB-P4
- Inputs: 4 IP camera
- Recording: Up to 4K Resolution
- Storage: 1 SATA HDD up to 8TB
- Third-party IP camera supported
6,000৳
0.0৳
| System | |
| Operating System | Linux system |
| Audio and Video | |
| IP Camera Input | 4 Channel |
| Display | |
| Interface | 1 HDMI and 1 VGA |
| Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Decoding Capacity | Ultra 265/H.265/H.264 |
| Recording | |
| Resolution | 1080p/960p/720p/D1/2CIF/CIF |
| Playback And Backup | |
| Sync Playback | 4 Channel |
| Third Party Support | |
| Third Party Support | ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T |
| Network | |
| Interface | 1 self-configuring Ethernet interface type RJ45, 10/100 Mbps |
| Ethernet Port | 10M/ 100M/ 1000M self-adaptive Ethernet |
| PoE | 8 Channel |
| Network Function | Incoming Bandwidth: 50Mbps Outgoing Bandwidth: 40Mbps |
| Maximum User Access | Remote Users: 128 |
| Storage | |
| Internal HDD | 1 SATA interface |
| HDD Mode | Up to 8TB |
| Auxiliary Interface | |
| USB | 2 x USB2.0 |
| Power | |
| Power Supply | 48V DC Power |
| Power Consumption | ≤5 W (without HDD) |
| Component Environment | |
| Operational Conditions | -10 to +55°C, ≤ 90% relative humidity (non-condensing) |
| Construction | |
| Dimensions | 205×205×42mm |
| Net Weight | 640g |
| Warranty | |
| Manufacturing Warranty | 1 year |
Description
Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR
The Uniview NVR301-04LB-P4 4 Channel 4K PoE NVR has H.265+ Ultra Video formats 4-channel video input. This device has 4 independent network interfaces, and it's plug and play device. The NVR301-04LB-P4 PoE 4 Channel NVR is supported with other Third-party IP cameras with ONVIF. The Uniview device has 1-channel HDMI and VGA output simulation. The NVR301-04LB-P4 Device supports a 2MP resolution camera for recording. This device has a storage capacity of up to 8TB with a single SATA HDD slot. This device's Firmware can be upgraded by the cloud.
