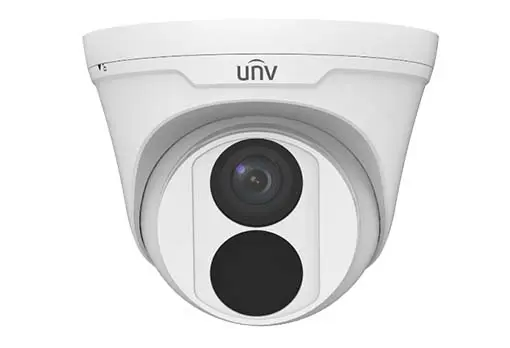

Uniview IPC3614LB-SF28-A 4MP Fixed Dome Network Camera
Quick Details
- Model: IPC3614LB-SF28-A
- Image Sensor: 1/3” CMOS
- Resolution: Max. 4MP (2560 × 1440)@25/20 fps
- Lens: 2.8mm, 4.0mm, Aperture: 2.0, IR Distance: 30 M
- Features: PoE, DWDR, 3D DNR, Smart Detection, IP67
0৳
0.0৳
| Camera Feature | |
| Image Sensor | 1/3.0", 4.0 megapixel, CMOS |
| IR Distance | Smart IR, up to 30m (98ft) IR distance |
| Others | Minimum Illumination: Colour: 0.01Lux ( F2.0, AGC ON) 0Lux with IR Shutter: Auto/Manual, 1 ~ 1/100000s Material: Metal+Plastic |
| Lens | |
| Type | 2.8mm and 4.0mm @2.0, Fixed-focal |
| Focal Length | 850nm |
| Angle of View | 97.0° x 52.2° x 107.5° (H x V x D) |
| Others | Lens Mount: M12 IR Distance: Up to 30m (98ft) IR range IR Control: Auto/Manual Flip: Normal/ Vertical/ Horizontal/ 180°/ 90°Clockwise/ 90°Anti-clockwise Digital Noice Reduction: 2D/ 3D DNR |
| Physical Specification | |
| Dimension | Φ118 x 96mm (Φ4.6” x 3.8”) |
| Weight | 0.28kg (0.86lb) |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W |
| Interface | Power Interface: Ø 5.5mm coaxial power plug Network Interface: 1 * RJ45 10M/100M Base-TX Ethernet |
| Others | Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Water & Dust Protection: IP67 Reset Button: N/A Surge Protection: 4KV Network Storage: ANR, NAS(NFS) Defog: Digital Defog |
| Warranty | |
| Warranty | 1 Year Warranty |
Description
Uniview IPC3614LB- SF28- A 4MP Fixed IR Eyeball Dome IP Camera
The Uniview IPC3614LB-SF28-A 4MP Fixed IR Eyeball Dome IP Camera is a high-performance surveillance solution designed for both indoor and outdoor use. The Uniview Camera features a 4MP CMOS sensor, delivering clear and detailed images with a resolution of 2560x1440 pixels at 25/20fps. The IPC3614LB-SF28-A network camera supports multiple video compression formats, including Ultra 265, H.265, H.264, and MJPEG, ensuring efficient storage and transmission of video data. The Uniview IPC3614LB-SF28-A Security Camera is equipped with smart infrared (IR) technology, the camera provides up to 30 meters of night vision, making it ideal for low-light environments. The built-in microphone allows for audio recording, adding an extra layer of security. With IP67 protection, the Uniview IPC3614LB-SF28-A camera is dustproof and waterproof, ensuring reliable performance in harsh conditions. The Uniview IPC3614LB-SF28-A camera supports Power over Ethernet (PoE), simplifying installation and reducing cable clutter. This Uniview 4MP Fixed IR Eyeball Dome IP Camera also features a 3-axis adjustment mechanism, allowing for flexible installation and optimal field of view. The Uniview IPC3614LB-SF28-A is compatible with various network protocols, including ONVIF, ensuring seamless integration with existing security systems. Whether for home or business use, this camera offers robust security features and high-quality imaging, making it a reliable choice for surveillance needs.
