TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter
Quick Details
- Model: TL-FC111B-20
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)
- Ranges up to 20km (12.4 miles), Work with TL-FC111B-20 as a pair
1,690৳
0.0৳
| Main Feature | |
| Port | 1x 100M single SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
| Network Standard | IEEE 802.3, IEEE 802.3i, IEEE802.3u |
| Advanced Functions | Auto-negotiation of half-duplex / full-duplex transfer mode Full-duplex flow control (IEEE 802.3x) Half-duplex flow control (Backpressure) Extends fiber distance up to 20km (12.4 miles) |
| Environment | Operating Temperature 0˚C to 50˚C (32˚F to 122˚F) Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F) Operating Humidity 10% to 90% RH non-condensing Storage Humidity 5% to 90% RH non-condensing |
| Hardware Features | |

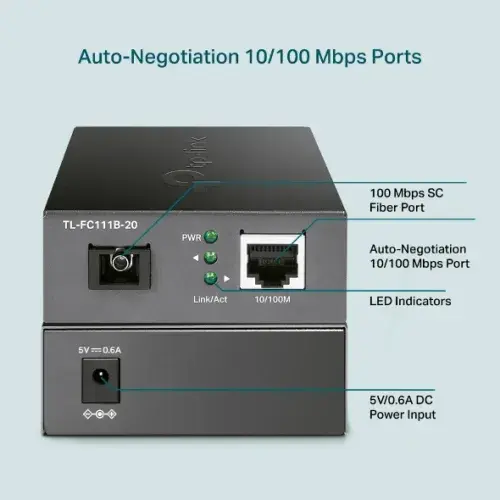

| Interface | 1× 100 Mbps SC Fiber Port 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX) |
| LED | PWR, Link/Act |
| Power Supply | External Power Adapter: 5 V/0.6 A |

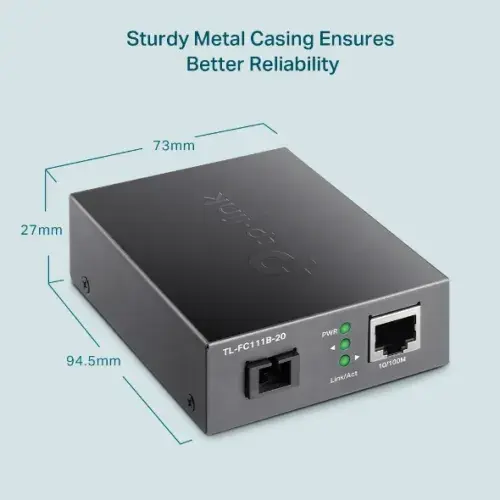

| Dimensions (L x W x H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Manufacture Warranty | |
| Warranty | 01-Year |
Description

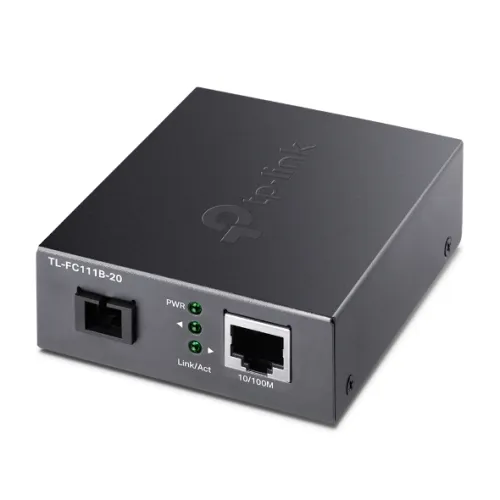

TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter
The TP-Link TL-FC111B-20 is a 100M media converter with a 100M RJ-45 connection and a 100M SC fiber port that can convert between electrical and optical data. Long-distance data transfer through optical fiber may also be used in business settings such as park security monitoring and wireless networking. The TL-FC111B-20 uses WDM (wavelength division multiplexing) technology to deliver and receive data across a distance of up to 20km (12.4 miles) using only one fiber, saving clients half the cost of cable deployment. On optical fiber, the TL-FC111B-20 sends data at 1310nm and receives data at 1550nm. The TL-FC111A-20 operates as a pair on the opposite end, receiving data at 1310nm and transmitting data at 1550nm. The TP-Link TL-FC111B-20 10/100 Mbps WDM Media Converter comes with a 01-year warranty.
