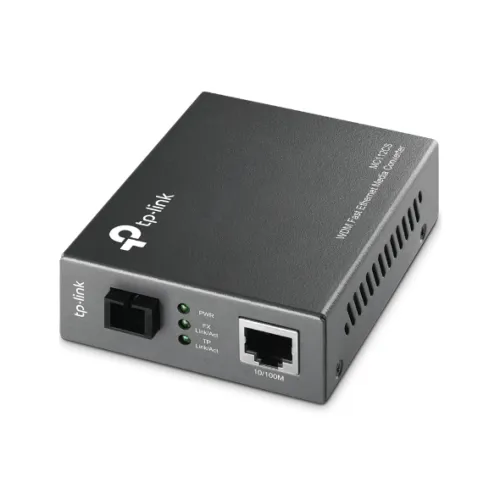

TP-Link MC112CS 10/100Mbps WDM Media Converter
Quick Details
- Model: MC112CS
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km (12.5 miles)
2,390৳
0.0৳
| Main Feature | |
| Port | 1 x 100M SC/UPC port 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Network Standard | IEEE 802.3, IEEE 802.3u |
| Advanced Functions | Adopts WDM technology Half/Full-Duplex transfer mode for FX port minimize the loss caused by link failure timely Extends fiber distance up to 20km |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Hardware Features | |
| LED | PWR, Link/Act |
| Power Supply | Power Supply: External Power Adapter (9VDC/ 0.6A) Max Power Consumption: 2.41W |
| Dimensions (L x W x H) | 3.7 x 2.9 x 1.1 in. (95 x 73 x 27 mm) |
| Manufacture Warranty | |
| Warranty | 01-Year |
Description
TP-Link MC112CS 10/100Mbps WDM Media Converter
The TP-Link MC112CS is a media converter intended to convert 10/100Base-TX copper media to and from the 100BASE-FX fiber. WDM technology allows the MC112CS to transmit and receive data using just one fiber cable, saving you 50% on cabling expenses. The MC112CS is designed for use with single-mode fiber cable using the SC-Type connector and is compliant with IEEE 802.3u 100Base-TX and 100Base-FX standards. At full wire speed forwarding rate, the MC112CS implements the longwave (LX) laser standard. It operates at 1310nm for data transmission and 1550nm for data reception. To function with the MC112CS, the opposite end device must transmit data at 1550 nm and receive data at 1310 nm. One example of a TP-Link media converter that works with the MC112CS is the MC111CS. Automatic MDI/MDI-X for the TX port, as well as automatic duplex mode negotiation. The MC112CS can communicate across longer fiber optic distances of up to 20 kilometers using single-mode fiber (12.5 miles). The TP-Link MC112CS 10/100Mbps WDM Media Converter comes with a 01-year warranty.
