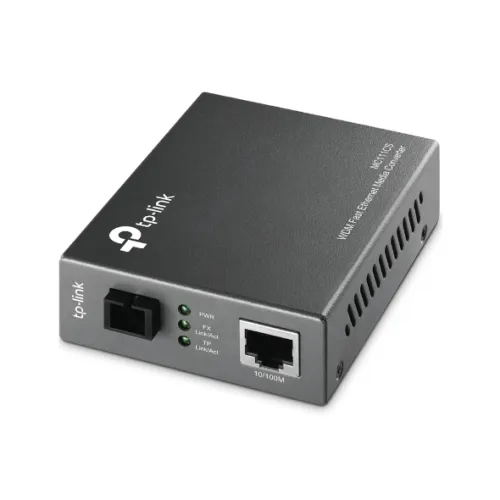

TP-Link MC111CS 10/100Mbps WDM Media Converter
Quick Details
- Model: MC111CS
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Work with MC112CS WDM single fiber media converter
- Extends fiber distance up to 20km (12.5 miles)
2,390৳
0.0৳
| Main Feature | |
| Port | 1 x 100M SC/UPC port 1 x 10/100M RJ45 port (Auto MDI/MDIX) |
| Network Standard | IEEE 802.3, IEEE 802.3u |
| Advanced Functions | Adopts WDM technology Half/Full-Duplex transfer mode for FX port minimize the loss caused by link failure timely Extends fiber distance up to 20km (12.5 miles) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Hardware Features | |
| LED | PWR, Link/Act |
| Power Supply | Power Supply: External Power Adapter Max Power Consumption: 2.49W |
| Dimensions (L x W x H) | 3.7 x 2.9 x 1.1 in. (95 x 73 x 27 mm) |
| Manufacture Warranty | |
| Warranty | 01-Year |
Description
TP-Link MC111CS 10/100Mbps WDM Media Converter
The TP-Link MC111CS is a media converter intended to convert 10/100Base-TX copper media to or from the 100BASE-FX fiber. The MC111CS uses WDM technology, using only one fiber cable for data transmission and reception, saving you 50% on cabling expenses. The MC111CS is designed for use with single-mode fiber cable using the SC-Type connector and adheres to IEEE 802.3u 100Base-TX and 100Base-FX standards. At full wire speed forwarding rate, the MC111CS implements the longwave (LX) laser standard. It operates at 1550 nm for data transmission and 1310 nm for data reception. To function with the MC111CS, the opposite end device must transmit data at 1310nm and receive data at 1550nm. One example of a TP-LINK media converter that works with the MC111CS is the MC112CS. Front panel status LEDs, automatic MDI/MDI-X for the TX port, and automatic duplex mode negotiation. The MC111CS can communicate across longer fiber optic distances of up to 20 kilometers using single-mode fiber (12.5 miles). The TP-Link MC111CS 10/100Mbps WDM Media Converter comes with a 01-year warranty.
