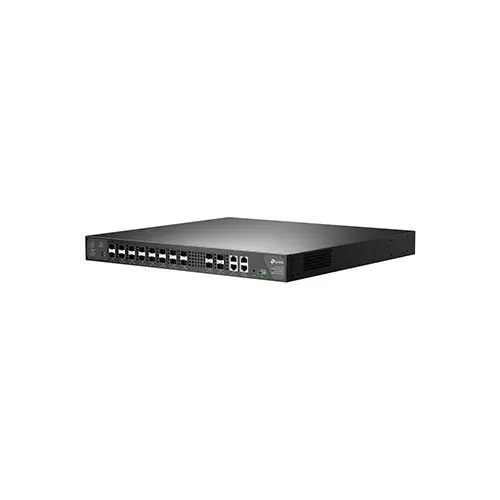

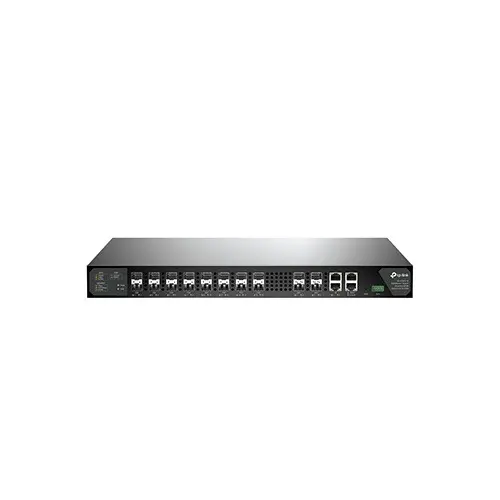

TP-Link DeltaStream DS-P7001-16 16-port Pizza-box GPON OLT
Quick Details
Model: DS-P7001-16
16 GPON ports supporting 1:128 split (up to ~2,048 ONTs)
4× 10 G SFP+ uplinks + 2× Gigabit RJ45 uplinks
Dual hot-swappable AC/DC power supplies
Full L2 + advanced L3 functions, centralized management
0৳
0.0৳
| Model | DS-P7001-16 |
| GPON Ports | 16 |
| Splitting Ratio | Up to 1:128 per port |
| Maximum ONTs Supported | Up to ~2,048 |
| Uplink Interfaces | 4 × 10 G SFP+ + 2 × 10/100/1000 RJ45 |
| Other Interfaces | 1 × RJ45 Console Port, 1 × RJ45 Management Port, 1 × Alarm Port |
| GPON Port Attribute | Single-mode fibre 9/125 µm, SC/UPC interface |
| GPON Speed | Downstream: 2.5 Gbps; Upstream: 1.25 Gbps |
| Wavelengths | Tx: 1490 nm; Rx: 1310 nm |
| Transmission Distance | Up to ~60 km |
| Power Supply | Dual supply: 2×AC or 2×DC or AC+DC combination |
| AC Input | 100-240 V, 50/60 Hz |
| DC Input | -38.4 V ~ -72 V |
| Max Power Consumption | ≈ 103 W |
| Dimensions (W×D×H) | 440 × 440 × 44 mm (≈ 17.3″×17.3″×1.7″) |
| Operating Temperature | 0 °C ~ 50 °C (32 °F ~122 °F) |
| Storage Temperature | -40 °C ~ 70 °C |
| Certifications | CE, FCC |
Description
The TP-Link DeltaStream DS-P7001-16 is a high-performance, compact “pizza-box” style GPON OLT engineered for service provider and enterprise fibre-access deployments. With 16 GPON ports supporting a large 1:128 split ratio per port, the device can serve up to around 2,048 ONTs from a single chassis—ideal for large FTTH (Fiber-to-the-Home) rollouts or high-density multi-dwelling units.Its uplink architecture includes four 10 G SFP+ ports and two gigabit RJ45 ports, enabling high-bandwidth backhaul connectivity. The dual hot-swappable AC/DC power supply design ensures carrier-class availability and resilience. On the software side, it supports a comprehensive set of L2 functionality and advanced L3 routing capabilities, along with full management via CLI, SNMP, Web UI and the DeltaStream PON Management System (DPMS). Features such as ONU auto-authentication, rogue ONU detection/isolation, traffic encryption, QoS (including voice VLANs), IGMP/MLD snooping, DHCP server/relay, and static routing make it well-suited for modern fibre-access networks.
