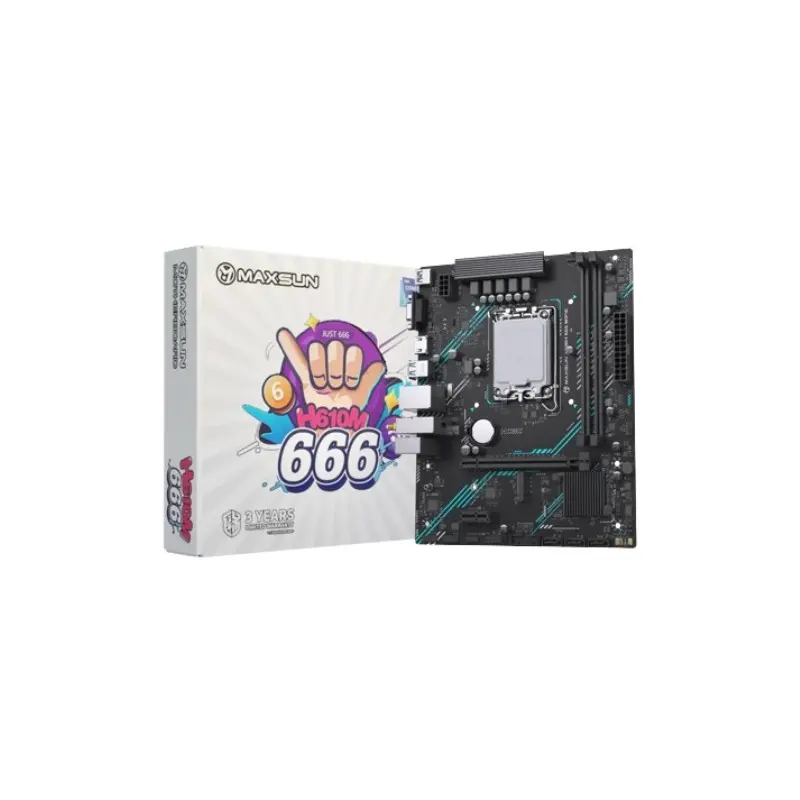

Maxsun H610M 666 WiFi 6 DDR4 Motherboard
Quick Details
10,500৳
0.0৳
Main Features | |
Chipset | INTEL H610 |
Form Factor | M-ATX 220mm x 185mm |
Generel information | |
Audio Feature | Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
EXPANSION SLOT | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot |
INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x TPM pin header(Support TPM 2.0) |
LAN | Realtek® RTL8111H 1G LAN |
LED FEATURE | 4x Distributed Debug LED |
Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHzbr> Supports Intel® XMP 2.0 OCbr> Supports Dual-Controller Dual-Channel mode |
Onboard Graphics | 1x Display Port 1.2 1x HDMI™ port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
RAID | Not Supports RAID |
Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode) 4x SATA 6Gb/s ports |

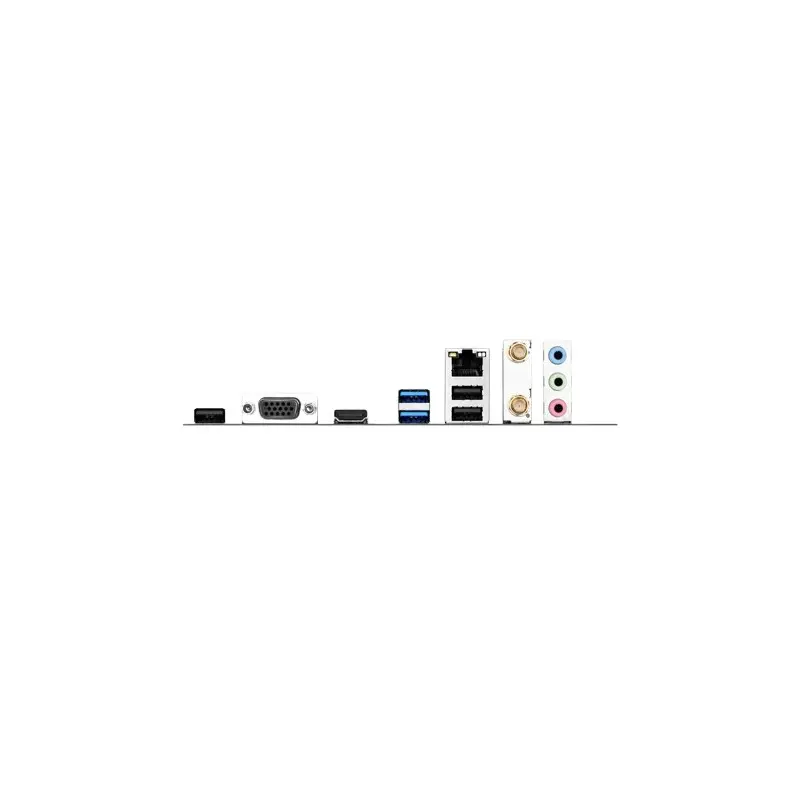

USB | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 |
Warranty Information | |
Warrantty | 3 Years |
Description
MAXSUN H610M 666 WiFi 6 DDR4 Motherboard in Bangladesh

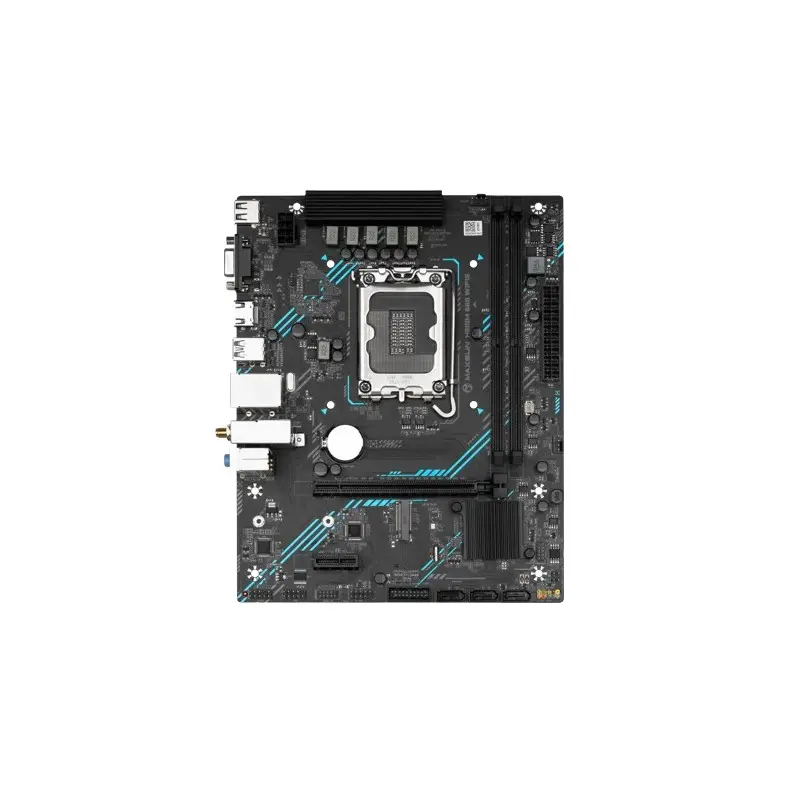

The Maxsun H610M 666 WiFi 6 DDR4 Motherboard, available at Munshiganj IT, is a standard motherboard that features an Intel H610 chipset and supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors with an LGA 1700 socket. The motherboard supports DDR4 memory with a maximum capacity of 64GB and bus speeds from 2400 MHz to 3200 MHz (OC). It also supports dual-controller dual-channel mode. For audio, it features a Realtek ALC897 Codec for 5.1-Channel High Definition Audio. The motherboard includes a Realtek RTL8111H 1G LAN for networking. For graphics, it offers 1x DisplayPort 1.4 and 1x HDMI port. The motherboard also includes 1x PCIe 5.0 x16 slot and 1x PCIe 3.0 x4 slot for expansion. For storage, it supports M.2 SSDs (2242/2280/22110) with PCIe 4.0 x4 mode and has 4x SATA 6Gb/s ports. The motherboard features a total of 13 USB ports. It also includes Intel Wi-Fi 6E AX211 for wireless connectivity and supports Bluetooth V5.3. The motherboard also includes a variety of internal I/O ports and features 4x distributed debug LED. It supports Windows 11 64-bit and Windows 10 64-bit operating systems.
