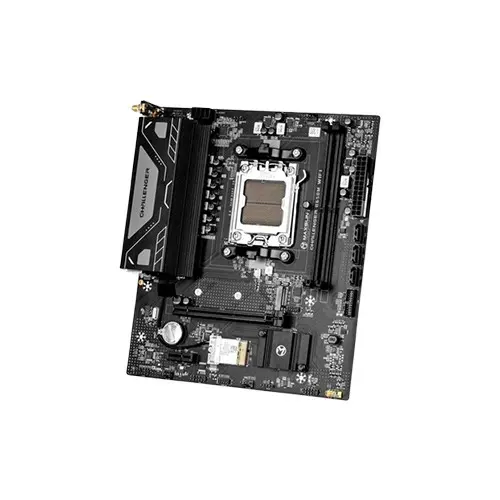

Maxsun Challenger B650M Wi-Fi 5 DDR5 AMD Micro-ATX Motherboard
Quick Details
- Supported CPU: Ryzen AMD RYZEN7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, 5200 +(OC)
- Graphics Output: 1x HDMI, 1x VGA
- Features: RTL8821CE Wireless Card and Bluetooth 4.2
1৳
0.0৳
Main Features | |
Chipset | AMD B650 Chipset |
Form Factor | M-ATX (245mm x 210mm) |
Supported CPU | AMD RYZEN7000 Series |
Generel information | |
Audio Feature | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
Channel Supported | Supports Dual-Controller Dual-Channel mode |
Display Port | 1x VGA |
Expansion Slots | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot |
Graphic | *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. |
LAN | Realtek RTL8111HNIC Chip |
Number of Memory Slots | 2x DDR5 |
USB Ports | Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins |
Wireless | RTL8821CE Wireless Card: Enables wireless connectivity and supports Bluetooth 4.2. |
Wireless Communication module | RTL8821CE Wireless Card: Enables wireless connectivity and supports Bluetooth 4.2. |
Memory Specifications | |
Supported Memory | Support 4800MHZ/5200MHZ/OC Memeroy Frequency |
Connector & ports | |
HDMI | 1x HDMI |
Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
Warranty Information | |
Warranty | 3-year Warranty |
Description
MAXSUN Challenger B650M Wifi AM5 Motherboard
The MAXSUN Challenger B650M Wifi AM5 Motherboard is designed to deliver robust performance for users building an AMD-based system. It supports the latest AMD Ryzen 7000 Series processors, offering cutting-edge computing power with the AM5 socket and the reliable AMD B650 chipset. Its m-ATX form factor makes it a compact yet powerful solution, ideal for gaming, content creation, and heavy multitasking. Equipped with 2x DDR5 memory slots, this motherboard supports the latest memory technology with speeds of 4800MHz and 5200MHz (OC), providing ultra-fast data processing and efficient multitasking. It ensures optimal performance with dual-channel mode for increased memory bandwidth. For graphics, the MAXSUN Challenger B650M features an HDMI™ port capable of 4K@30Hz, delivering high-quality visual output. The board also supports VGA, offering flexibility with legacy displays, though its performance will depend on the CPU in use. Expansion options include one PCIe 4.0 x16 slot for high-performance graphics cards and two additional PCIe slots (3.0 x4 and 3.0 x1), giving users the versatility to expand their system's capabilities with various peripherals. In terms of storage, it features one M.2 slot with PCIe 4.0 x4 support, ensuring fast SSD read/write speeds, alongside four SATA 6Gb/s ports for additional storage options. Networking is handled by a Realtek RTL8111HNIC chip for stable Ethernet connections and an RTL8821CE wireless card for seamless Wi-Fi and Bluetooth 4.2 connectivity. For audio, the motherboard integrates the Realtek ALC897 codec, offering 5.1-channel high-definition audio for immersive sound. With an array of USB ports, including USB 3.2 GEN1 and USB 2.0, this motherboard provides ample connectivity for peripherals. Designed with durability and reliability in mind, the MAXSUN Challenger B650M comes with a 3-year warranty, ensuring long-term peace of mind.
