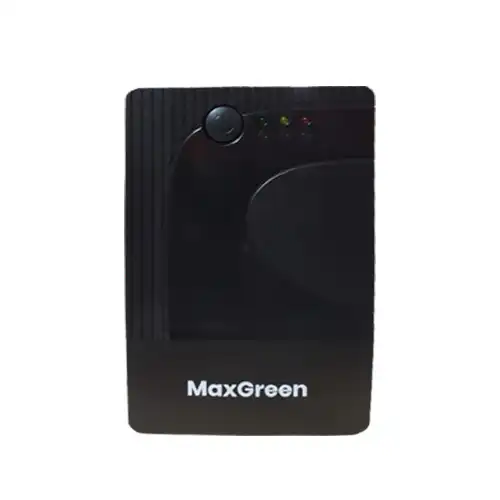

MaxGreen MG-LI-EAP-650VA 650VA Offline UPS
Quick Details
- Model: MG-LI-EAP-650VA
- Capacity: 650VA
- Input Voltage: 220/230 V
- 2 Universal Sockets
- Backup Time: up to 30 minutes
3,400৳
0.0৳
Main Feature | |
Capacity | 650VA |
Input Voltage | 220Vac |
Output Voltage | 220Vac |
Frequency (Battery Mode) | 50Hz ± 1Hz |
Noise Level | Less than 40dB |
Battery | Internal maintenance-free lead-acid(12V/ 7/ 7.5Ah*1) |
Alarm | Battery mode- Sounding every 10 seconds Low battery- Sounding every 10 seconds Overload -Sounding every 10 seconds Battery Replacement -Alarm Sounding every 10 seconds Fault- Continuously sounding |
Indications | Line Mode Green lighting ,Battery Mode Yellow Lighting ,Fault Red Lighting |
Input Features | |
Frequency | 50 Hz |
Voltage Range | 140-290VAC |
Output Features | |
Backup Time | up to 30 minutes |
Type of Wave | Simulated Sine Wave (Bat Mode) |
Transfer Time | Typical 2-6ms |
Manufacture Warranty | |
Warranty | 01-Year Warranty Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
MaxGreen MG-LI-EAP-650VA 650VA Offline UPS
MaxGreen MG-LI-EAP-650VA Offline UPS comes with 220Vac Input Voltage, 140-290VAC Input Voltage Range, 50 Hz Frequency, 220Vac Output Voltage. This offline UPS, It also features with ±10% (Bat Mode) AC Voltage Regulation, 50Hz ± 1Hz (Bat Mode) Frequency Range, and a 2-6ms Transfer time Typically that provides you good performance. The MaxGreen MG-LI-EAP-650VA Offline UPS also has Waveform Simulated Sine Wave (Bat Mode), Battery Internal maintenance-free lead-acid (Battery Type & Number 12V/9Ah*1). This UPS provides 4-6 hours recover time to 90% capacity, Full protection Short circuit, Overload, Battery discharge and overcharge, Surge protection. This UPS also has Humidity 0-90% Relative Humidity 0-40 ƒ (Non-condensing) and Noise Level of Less than 40dB. The MaxGreen MG-LI-EAP-650VA Offline UPS comes with 01 year warranty.
Under the following conditions, the warranty would not be provided:
• UPS burning due to thunder, abnormal overload, insect entrance and others.
• If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7)
• If the product is placed in a dusty and damp place.
• In the absence of Generator connectivity Without proper battery charge, the warranty will be void.
• Battery swelling and overcharging due to the wrong system voltage setting of the UPS.
