- Hikvision 64 Channel 4HDD 8K NVR (8 Sata UP to 80TB) 1080P, H.265+/H2.65+, UP TO 32MP Network Camera Supports# DS-9664NI-M8

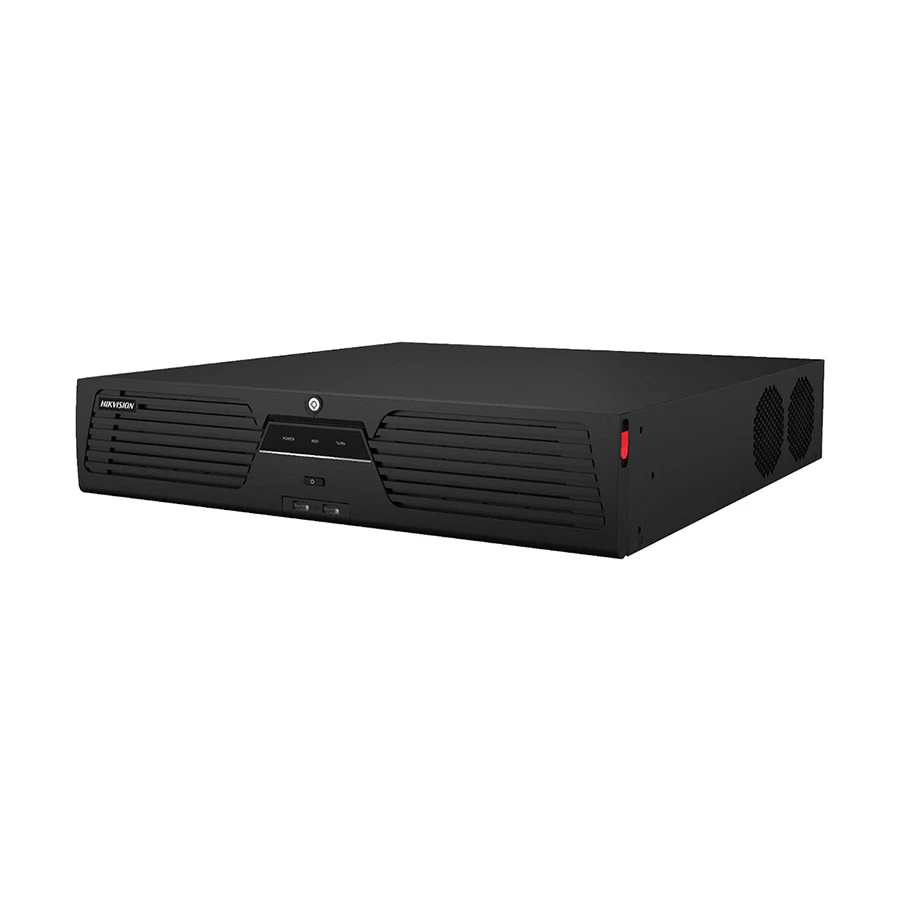

Hikvision 64 Channel 4HDD 8K NVR (8 Sata UP to 80TB) 1080P, H.265+/H2.65+, UP TO 32MP Network Camera Supports# DS-9664NI-M8
Quick Details
- Model: DS-9664NI-M8
- Up to 64-ch IP Camera Inputs
- 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
135,000৳
0.0৳
| Audio and Video | |
| IP Camera Input | Support up to 64-ch |
| Two-Way Talk | 1 Channel RCA (2.0 Vp-p, 1 K, using the audio input) |
| Display | |
| Resolution | HDMI 2 Output: 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capacity | 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Recording | |
| Compression | Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Resolution | 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Playback And Backup | |
| Sync Playback | 16 Channel |
| Network | |
| Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Auxiliary Interface | |
| USB | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| RS232 | 1 RS-232 |
| RS485 | 1 RS-485 (full-duplex) |
| Power | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 50 W (without HDD) |
| Construction | |
| Dimensions | 445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7") |
| Net Weight | ≤ 10 kg (without HDD, 22 lb.) |
| Warranty | |
| Manufacturing Warranty | 1 year warranty |
