GIGABYTE H610M K DDR4 Micro ATX Motherboard
Quick Details
- Model: H610M K DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR4, Max 64GB 3200
- Graphics Output: 1x HDMI 2.1
- Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
10,500৳
0.0৳
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM sockets |
| Supported Memory | Support for 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors |

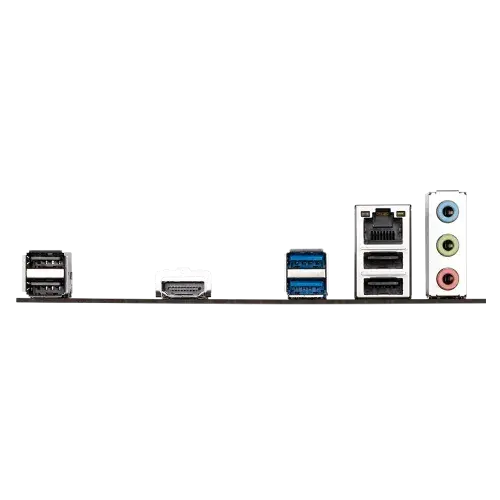

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper Back Panel Connectors 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | iTE I/O Controller Chip |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 years Warranty |
Description

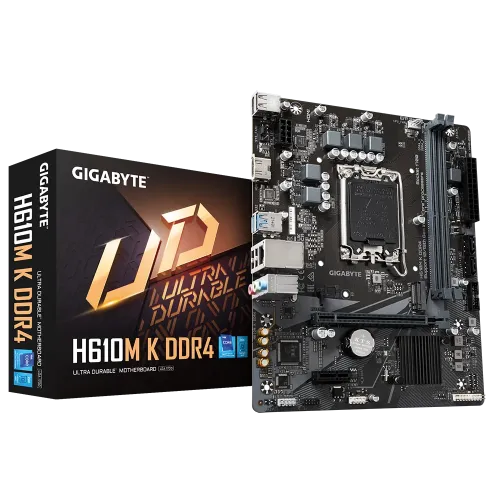

GIGABYTE H610M K DDR4 Micro ATX Motherboard
The GIGABYTE H610M K DDR4 Micro ATX Motherboard is a compact and versatile solution designed for users seeking a reliable and efficient platform for their computing needs. With support for 14th, 13th, and 12th Gen Intel processors via the LGA1700 socket, it accommodates a wide range of CPUs, including the latest Intel Core, Pentium, and Celeron models. This motherboard offers four DDR4 memory slots, allowing for a maximum capacity of 64GB and supporting speeds up to 3200 MHz, ensuring ample memory bandwidth for multitasking and intensive applications. The motherboard features a single HDMI 2.1 port, capable of delivering high-quality video output at resolutions up to 4K, making it ideal for high-definition displays and content. For network connectivity, it includes a Realtek GbE LAN chip, which provides network speeds of up to 1 Gbps, with backward compatibility for 100 Mbps connections. This ensures fast and reliable internet connectivity for online activities. The GIGABYTE H610M K DDR4 is a great choice for users looking to build a modern PC that balances performance and value.
