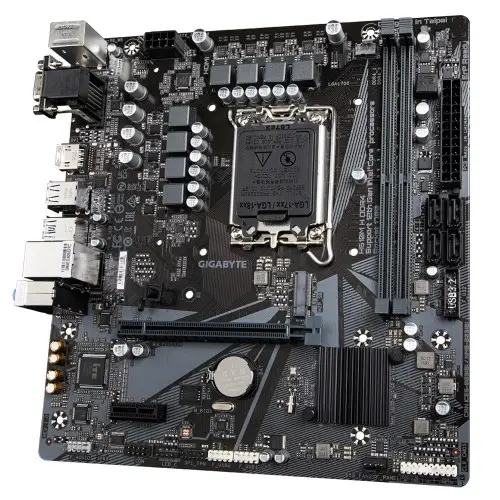

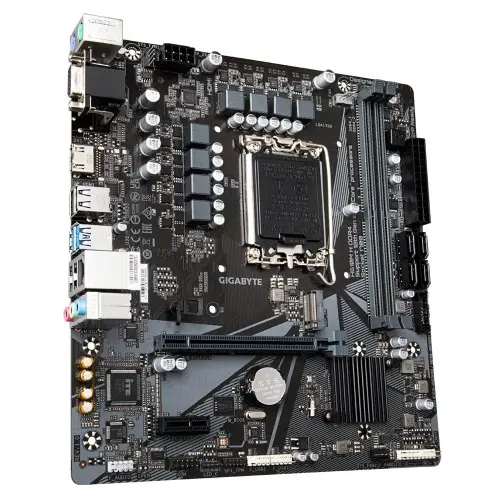

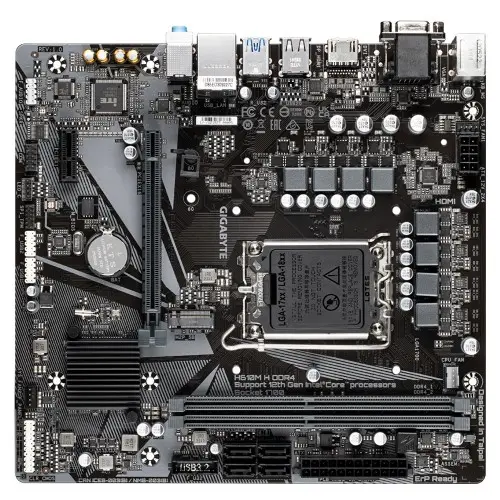

GIGABYTE H610M H DDR4 Micro ATX Motherboard
Special Price:
11,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
02661
Quick Details
- Model: H610M H DDR4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Intel GbE LAN with cFosSpeed Internet Accelerator Software
- NVMe PCIe 3.0 x4 M.2
11,500৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| Basic Information | |
| Supported CPU | LGA1700 socket: Support for 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
| Chipset | Intel H610 Express Chipset |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DDR DIMM sockets |
| Supported Memory | 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 64 GB (32 GB single DIMM capacity) of system memory |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |

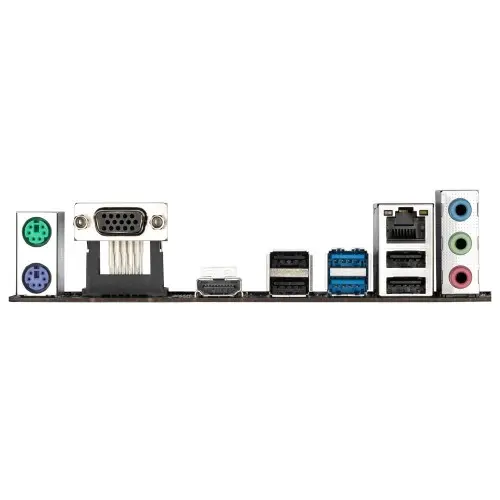

| Connector & Ports | |
| HDMI | 1 x HDMI 2.0 port |
| D-Sub (s) | 1 x D-Sub port |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description

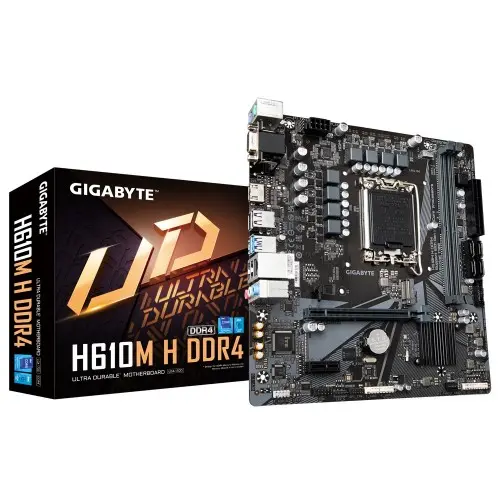

GIGABYTE H610M H DDR4 Micro ATX Motherboard
The GIGABYTE H610M H DDR4 features LGA1700 socket support for 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron Processors. It comes with dual-channel non-ECC unbuffered DDR4 and 2 DIMMs. It has a 6+1+1 hybrid digital VRM design. Solid capacitors to improve transient response and minimize oscillation. It is equipped with a Realtek 8118 LAN, a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It features solid-plated ATX 12V 8-pin power connectors to offer a stable power supply during CPU overloading. It has Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with Fan Stop. It is designed with HDMI and D-Sub ports for multiple displays. The GIGABYTE H610M H DDR4 motherboard comes with a 3-year warranty.
