- GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
Special Price:
9,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
02657
Quick Details
- Model: H470M H
- Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
- Supported RAM: 2 x DIMM, Max. 64GB, DDR4
- Graphics Output: 1 x D-Sub, 1 x HDMI
- Features: GbE LAN with Bandwidth Management
9,500৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| Basic Information | |
| Supported CPU | LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU |
| Chipset | Intel H470 Express Chipset |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 18.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| Expansion Slots | |
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MT/s memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 64 GB (32 GB single DIMM capacity) |
| Graphics | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * The D-Sub port is only available with the 10th Generation processors. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |

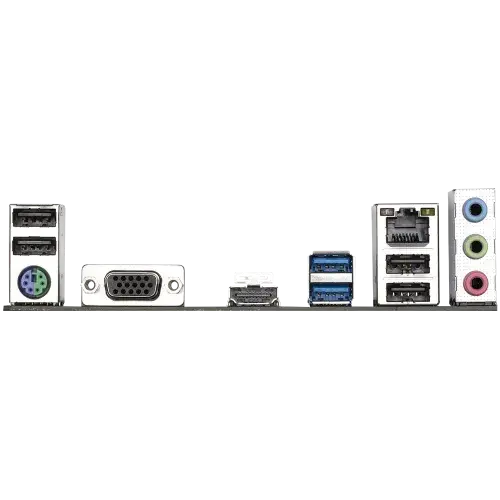

| Connector & Ports | |
| HDMI | 1 x HDMI |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Supported Storage | Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready |
| RAID | Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others | |
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description

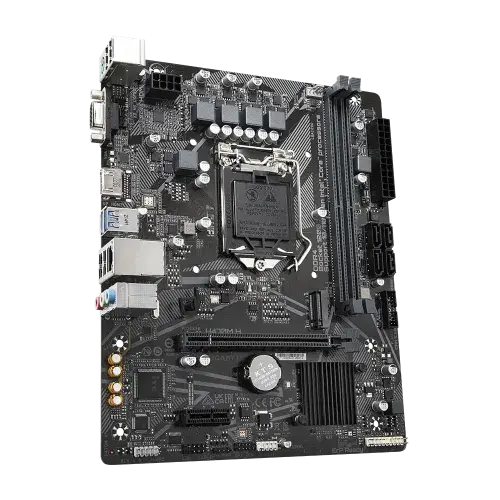

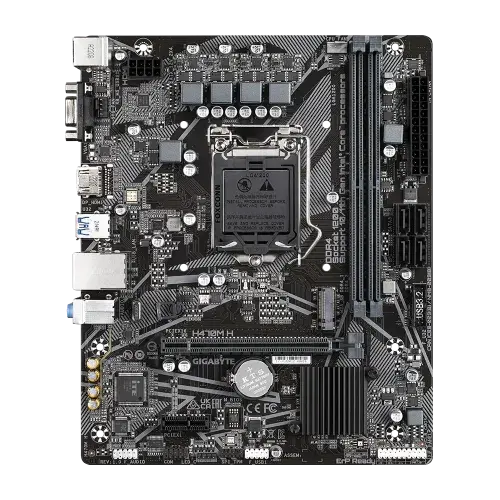

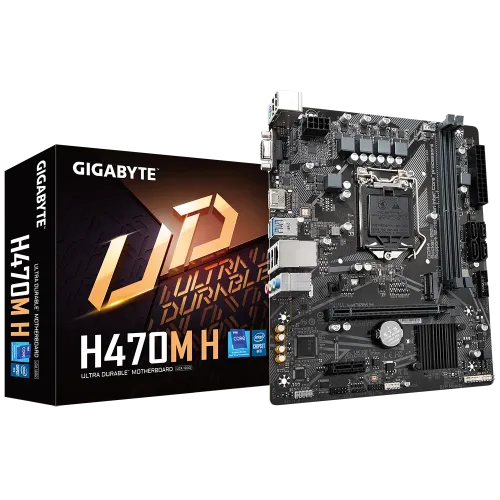

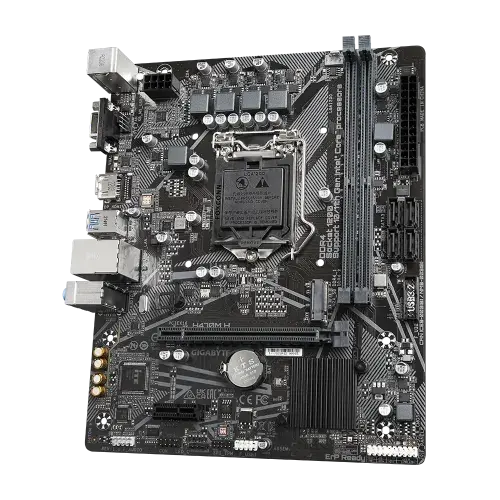

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard
The GIGABYTE H470M H Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios.
