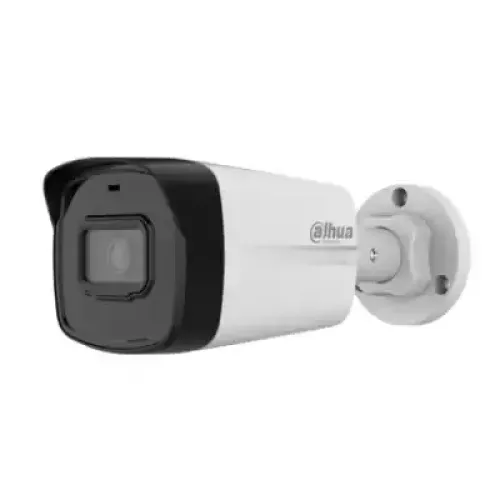

Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera
Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera

Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera

0.0
(0)
Special Price:
3,000৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
01888

Quick Details

  • Model: DH-IPC-HFW1230TL2-S5
  • Image Sensor: 1/2.8" CMOS
  • Resolution: Max 2MP (1920 × 1080) @25/30 fps.
  • Lens: 3.6mm, Aperture: F2.0, IR Distance: 30 meters
  • Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Camera
Image Sensor1/2.8" CMOS
Resolution1920 (H) × 1080 (V)
Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Day & NightAuto (ICR)/Color/B/W
Min. Illumination0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
SNR (dB)> 56 dB
Angle AdjustmentPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length3.6 mm;
ApertureF2.0
Field of View3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100°
Iris TypeFixed
Close Focus Distance3.6 mm: 0.8 m (2.6 ft)
DORI Distance3.6 mm: 49.7 m(163.1 ft), 19.9 m(65.3 ft), 9.9 m(32.5 ft), 5.0 m(16.4
Illuminator
IR LEDs2 (IR LED)
IR DistanceUP to 30 m (98.4 ft) (IR)
Illuminator ControlAuto; manual
Video
Video CompressionH.265; H.264; H.264B; 264H; MJPEG (Only supported by the sub stream)
Resolution1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Main Stream1920 × 1080@1–25/30 fps
Sub Stream704 × 576@1–25 fps704 × 480@1–30 fp
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateH.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Stream Capability2 streams
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/NightAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDRDWDR
Gain ControlAuto; manual
Noise Reduction3D NR
Region of Interest (ROI)Yes (4 areas)
MirrorYes
Privacy Masking4 areas
Storage
Network StorageFTP
Network
ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
InteroperabilityONVIF(Profile S); CGI; P2P
APIYes
User/Host6 (Total bandwidth: 36 M)
ClientIOS; Android
Web BrowserIE
Chrome
Firefox
AppSmart PSS; DSS; DMSS
Interface
Network InterfaceRJ-45 (10/100 Base-T)
Alarm
General AlarmNetwork disconnection; IP conflict; illegal access; motion detection; video tampering; security exceptio
Environment
Operating Temperature–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity≤ 95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Water ProtectionIP67
Power
Power Supply12V DC/PoE (802.3af)
PoE Standard802.3af
Power ConsumptionBasic power consumption: 1.3 W (12 VDC); 2.1 W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.9 W (12 VDC); 3.9 W (PoE)
Physical Information
Casing MaterialPlastic
Dimension198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00")(L × W × H)
WeightNet Weight: 0.25 kg (0.55 lb)
Gross Weight; 0.40 kg (0.88 lb)
Warranty Information
Warranty1 Year

Description

Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera

The Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera is a high-performance surveillance system built for dependable, high-definition video monitoring in a variety of scenarios. This camera's 2-MP 1/2.8" CMOS image sensor captures high-quality images with a maximum resolution of 1920 × 1080 pixels. It also supports full HD video at 25/30 frames per second. This means that every picture is caught in stunning clarity, making it suitable for both home and commercial security applications. The camera's low illuminance qualities make it very useful in low-light circumstances. It has an infrared illuminator with a maximum range of 30 meters (98 ft), allowing for clear nighttime monitoring even in full darkness. This function is critical for ensuring security throughout the clock, such as monitoring. The DH-IPC-HFW1230TL2-S5 uses superior H.265 video compression technology, which has a high compression rate and an extremely low bit rate. This makes better use of bandwidth and storage resources while maintaining video quality. The H.265 codec, together with the SMART H.264+/H.265+ encoding choices, adapts dynamically to changing network circumstances and storage capacity, making it appropriate for both high and low-bandwidth applications. The camera incorporates many image enhancing technologies to improve video quality in a variety of settings. These include Digital Wide Dynamic Range (DWDR) for balanced exposure in scenes with both bright and dark areas, 3D Noise Reduction (3D NR) for reducing image noise in low-light conditions, High Light Compensation (HLC) to avoid glare from bright lights, and Backlight Compensation (BLC) to ensure clear images in backlit environments. The DH-IPC-HFW1230TL2-S5 has superior detecting capabilities that improve security measures. It includes motion detection to detect unusual activity, video tampering alerts to detect any attempts to obstruct the camera, network disconnection and IP conflict detection to ensure reliable connections, and illegal access detection to notify you of unauthorized camera access. The camera accepts both 12 VDC and PoE (Power over Ethernet) power supply, allowing for simple setup and integration into existing network systems. The camera's IP67 classification assures that it is dust-tight and water-resistant, allowing it to work reliably in harsh weather and outdoor locations. The Dahua DH-IPC-HFW1230TL2-S5 2MP Bullet IP Camera is a versatile and feature-rich security solution that provides high-definition video capture, quick data administration, and extensive monitoring capabilities for a variety of security requirements.
