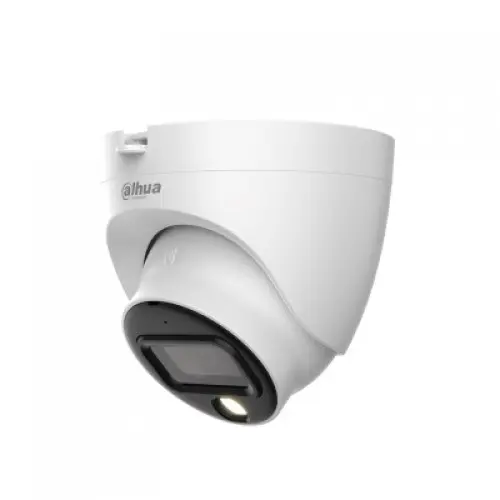

Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera
Quick Details
- Model: DH-HAC-HDW1509TLQP-A-LED
- Max 25 fps@5MP (16:9 video output), IP67 Water Rating
- 120dB true WDR, 3D NR, Built-in mic (-A),
- 24/7 color imaging, 20 m illumination distance
- 3.6 mm fixed lens, Field of View: H: 88; V: 46°; D: 104°
4,300৳
0.0৳
| General | |
| Casing | Metal inner core + plastic cover + plastic pedestal |
| Dimensions | φ97.1 mm × 91.4 mm (φ3.82" × 3.6") |
| Weight | Net Weight: 0.24 Kg (0.53 lb) Gross Weight: 0.37 Kg (0.82 lb) |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Operating Conditions | –40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation) |
| Storage Conditions | –40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation) |
| Power Supply | 12 V ±30% DC |
| Power Consumption | Max 4.4 W (12 V DC, warm light on) |
| Camera | |
| Image Sensor | 5MP CMOS |
| Effective Pixels | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s |
| Minimum Illumination | 0.001 Lux/F1.0, 0 Lux warm light on |
| S/N Ratio | > 65 dB |
| IR Distance | Fixed iris |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max Aperture | F1.0 |
| Angle of View | 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104° |
| Focus Control | Auto; manual |
| Close Focus Distance | 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft) |
| Video | |
| Resolution | 2880 (H) × 1620 (V) |
| Frame Rate | PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| BLC Mode | BLC/HLC/WDR/HLC-Pro |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Interface | |
| Audio Interface | One channel built-in mic (-A) |
| Video Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Warranty | |
| Warranty | 01-year warranty |
Description
Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Color HDCVI Eyeball Camera
The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera is designed for those that need high-quality monitoring tools at a low cost. It is both cost-effective and high-performing, making it an excellent choice for household and small-to-medium-sized commercial applications. This series provides a wide range of technologies, such as Full-color and Starlight, as well as a variety of solutions for diverse settings. A wide aperture lens and a high-performance sensor are used in this full-color camera. The camera provides 24/7 color monitoring that collects clear and vivid information, significantly increasing the probability of gathering valid human, vehicle, and event evidence that can be used for further intelligent analysis, thanks to a higher amount of absorbed light and advanced image processing algorithm. The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera series of strict tests on dust and soak. It has a dust-proof function and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. The Dahua DH-HAC-HDW1509TLQP-A-LED HDCVI Eyeball Camera comes with a 01-year warranty.
