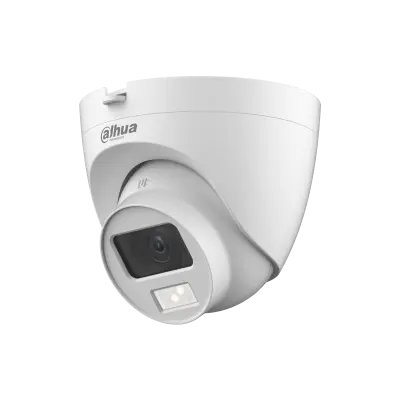

Dahua 5MP Smart Dual Light HDCVI Dome 20 MTR IR Distance, Lens 2.8 MM With Built In Mic (Plastic)#DH-HAC-HDW1500CLQP-IL-A
Dahua 5MP Smart Dual Light HDCVI Dome 20 MTR IR Distance, Lens 2.8 MM With Built In Mic (Plastic)#DH-HAC-HDW1500CLQP-IL-A

Dahua 5MP Smart Dual Light HDCVI Dome 20 MTR IR Distance, Lens 2.8 MM With Built In Mic (Plastic)#DH-HAC-HDW1500CLQP-IL-A

0.0
(0)
Special Price:
2,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
01860

Quick Details

  • Model: DH-HAC-HDW1500CLQP-IL-A
  • Max 25 fps@5MP (16:9 video output)
  • Smart Dual Light, Built-in Microphone
  • 3.6 mm fixed lens (2.8 mm optional)
  • Illumination Distance: IR: 20 m (65.62 ft)

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General
CasingPlastic
Dimensionsφ97.1 mm × 93.8 mm (φ3.82″ × 3.69″)
WeightNet Weight 0.19 kg (0.42 lb)
Gross Weight 0.3 kg (0.66 lb)
Pan/Tilt/RotationPan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Operating ConditionsOperating Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity <95% (RH), non-condensing
Storage ConditionsStorage Temperature –40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity <95% (RH), non-condensing
Power Supply12 VDC ± 30%
Power ConsumptionMax 4.5 W (12 VDC, WLED on)
Camera
Image Sensor5 MP CMOS
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>65 dB
IR Distance20 m (65.62 ft)
Warm Light: 20 m (65.62 ft)
IR On/Off ControlAuto/Manual
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max ApertureF1.6
Angle of View2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Focus ControlFixed
Close Focus Distance2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
Video
Resolution2880 (H) × 1620 (V)
Frame RateCVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Day/NightAuto(ICR)/Color/B/W
Gain ControlAuto/Manual
Noise Reduction2D NR
Warranty
Warranty1 Year

Description

Dahua DH-HAC-HDW1500CLQP-IL-A 5MP Dual Light HDCVI Dome Camera

The Dahua DH-HAC-HDW1500CLQP-IL-A 5MP Dual Light HDCVI Dome Camera can offer a higher level of security. This camera's maximum resolution of 2880 (H) × 1620 (V) offers remarkable image clarity because of its 5 MP CMOS image sensor. Its progressive scanning technology guarantees clear, detailed images which makes it perfect for live and recorded monitoring. The CC camera performs amazingly well in low light. It can capture images with as little as 0.05 lux of illumination, and in B/W mode, as little as 0.005 lux. Its visibility can be extended up to 20 meters with the help of warm light LEDs and Smart IR which makes nighttime monitoring dependable. Dahua DH-HAC-HDW1500CLQP-IL-A that comes with 2.8 mm and 3.6 mm options. This CC camera offers a wide field of view. A 106° horizontal view is possible with the 2.8 mm lens and a 92° view with the 3.6 mm lens. The CC camera's pan, tilt, and rotation adjustments add to this flexibility by enabling accurate installation and ideal coverage of the monitored area. In order to ensure compatibility with a broad range of devices, advanced video capabilities in this Dahua CC camera include support for multiple video output formats—CVI, TVI, AHD, and CVBS—through a single BNC port. This CC camera comes with a range of frame rates and resolution choices, including 5M, 4M, 1080p, and 960H. Image quality is greatly enhanced by extra features like auto white balance, 2D noise reduction, and DWDR in this Dahua Camera. The Dahua DH-HAC-HDW1500CLQP-IL-A camera is designed to withstand harsh environments. It features an IP67 classification for dust and water resistance. It functions well in temperatures ranging from -40°C to +55°C. Its durable plastic housing guarantees long-lasting performance, and the ability to install it on a wall, ceiling, or vertical pole. The Dahua DH-HAC-HDW1500CLQP-IL-A meets standards for electromagnetic compatibility and safety, having received certifications from the FCC, CE-LVD, and CE-EMC.
