Dahua 2MP Smart Dueal Light HDCVI Dome 25 MTR IR Distance, Lens 2.8 MM (Plastic)#DH-HAC-T1A21P-U-IL
Dahua 2MP Smart Dueal Light HDCVI Dome 25 MTR IR Distance, Lens 2.8 MM (Plastic)#DH-HAC-T1A21P-U-IL

Dahua 2MP Smart Dueal Light HDCVI Dome 25 MTR IR Distance, Lens 2.8 MM (Plastic)#DH-HAC-T1A21P-U-IL

0.0
(0)
Special Price:
1,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
01844

Quick Details

  • Model: HAC-T1A21P-U-IL
  • Image Sensor: 2 MP CMOS, Max. 30 fps@1080p
  • Lens: 2.8 mm fixed lens (3.6 mm optional)
  • IR Distance: 25m illumination Distance
  • CVI/CVBS/AHD/TVI switchable, Smart Dual Light

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General
CasingPlastic
DimensionsΦ85.0 mm × 77.1 mm (Φ3.35" × 3.04")

Weight0.12 kg (0.26 lb)

Pan/Tilt/RotationPan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Operating ConditionsTemperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing
Storage ConditionsTemperature: –40 °C to +60 °C (–40 °F to +140 °F)
Humidity: <95% (RH), non-condensing
Power Supply12 VDC ± 30%
Power ConsumptionMax 2.1 W (12 VDC, LED on)
Camera
Image Sensor2 MP CMOS
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Minimum Illumination0.02 lux@F2.0 (Color, 30 IRE);
0.002 lux@F2.0 (B/W, 30 IRE);
0 lux (Illuminator on)
S/N Ratio>65 dB
IR DistanceIR: 25 m (82.02 ft);
Warm light: 20 m (65.62 ft)
IR LEDs2 (Warm light);2 (IR light)
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm;3.6 mm
Max ApertureF2.0
Angle of View2.8 mm: H: 100°; V: 54°; D: 117°
3.6 mm: H: 80°; V: 43°; D: 94°
Close Focus Distance2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
Video
Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Frame RateCVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
AHD:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
TVI:
PAL: 1080p@25 fps
NTSC: 1080p@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Day/NightAuto(ICR)/Color/B/W
BLC ModeBLC; HLC; DWDR
Gain ControlAuto;Manual

Noise Reduction2D NR
Interface
Video InterfaceVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Warranty
Warranty1 year

Description

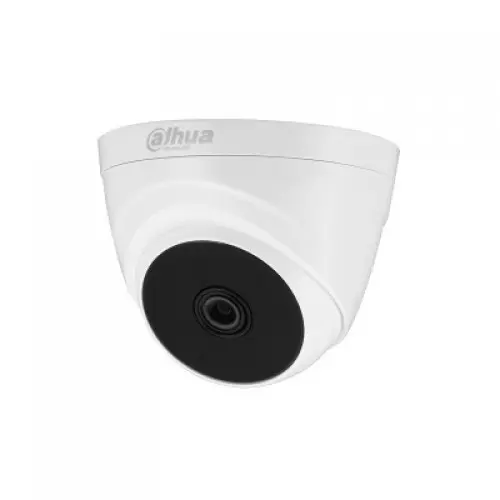

Dahua HAC-T1A21P-U-IL 2MP Smart Dual Light HDCVI Eyeball CC Camera

The Dahua HAC-T1A21P-U-IL Smart Dual Light HDCVI Eyeball CC Camera has a 2 MP CMOS image sensor with a maximum resolution of 1920 × 1080. It captures clear and detailed video footage at a maximum frame rate of 30 fps. The Smart Dual Light technology provides 25 meters of illumination distance with both infrared and warm light options, ensuring good visibility in a variety of lighting circumstances. This camera has a wide field of vision because of its fixed 2.8 mm lens, but an extra 3.6 mm lens is available for even greater coverage. The Dahua HAC-T1A21P-U-IL 2MP Smart Dual Light HDCVI CC Camera is designed to be versatile, supporting numerous video formats like as CVI, CVBS, AHD, and TVI, making it suitable for a wide range of surveillance systems. It has a progressive scanning mechanism and an electronic shutter speed range of 1/25 s to 1/100000 s for PAL and 1/30 s to 1/100000 s for NTSC, resulting in smooth video capture. The Dahua HAC-T1A21P-U-IL 2MP CC Camera's low illumination capabilities, down to 0.001 lux in B/W mode and 0 lux with the illuminator turned on, enable for clear video even in near-complete darkness. The Dahua HAC-T1A21P-U-IL also contains advanced image enhancement technologies such as 2D noise reduction (2D NR), backlight compensation (BLC), highlight compensation (HLC), and digital wide dynamic range (DWDR), which ensures optimal image quality even in demanding conditions. It provides a wide range of angle adjustments for precise placement and a power consumption of only 2.1 W.
