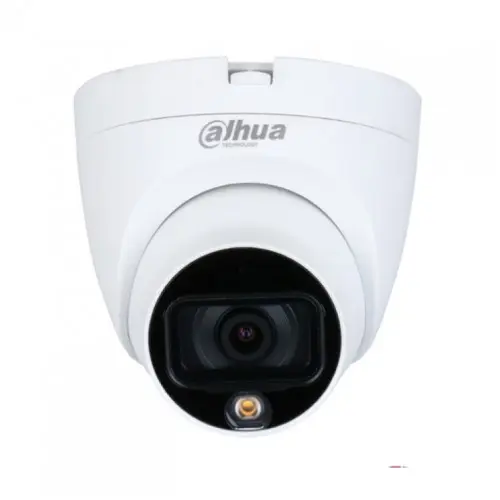

Dahua 2MP Full Time Color Dome HDCVI Camera 20 MTR IR Distance, Lens 2.8 MM (Metal+Plastic)#DH-HAC-HDW1209TLQP-LED-S2
Dahua 2MP Full Time Color Dome HDCVI Camera 20 MTR IR Distance, Lens 2.8 MM (Metal+Plastic)#DH-HAC-HDW1209TLQP-LED-S2

Dahua 2MP Full Time Color Dome HDCVI Camera 20 MTR IR Distance, Lens 2.8 MM (Metal+Plastic)#DH-HAC-HDW1209TLQP-LED-S2

0.0
(0)
Special Price:
2,000৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
01837

Quick Details

  • Model: DH-HAC-HDW1209TLQP-A-LED
  • Max. 30fps@1080P
  • 2.8 mm fixed lens
  • Angle of View 106 Degree
  • Casing Metal and IP67

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
General
CasingInner core: metal+plastic; cover: plastic;pedestal: plastic
Dimensions97mm×85.8mm
Weight0.22Kg
Operating Conditions-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
Storage Conditions-40°C to +60°C (-40°F to 140°F);<95% (non-condensation)
Power Supply12V ±30% DC
Power ConsumptionMax 3W (12V DC, white light on)
Camera
Image Sensor1/2.8 inch 2.16 Mega Pixels CMOS
Effective Pixels1920 (H)×1080 (V), 2MP
Electronic Shutter SpeedPAL:1/25s–1/100000s
NTSC:1/30s–1/100000s
Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux white Light on
IR Distance20 m
IR On/Off ControlAuto; Manual
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8m
Max ApertureF1.6
Angle of View2.8mm: 126.2°×106.0°×56.5° (diagonalxhorizontalxvertical)
3.6mm: 103.6°x86.9°x46.3°(diagonalxhorizontalxvertical)
Focus ControlFixed iris
Close Focus Distance2.8mm: 0.6m (1.97ft)
3.6mm: 1.2m (3.94ft)
Video
Resolution1920×1080
Frame RateMax. 30fps@1080P
Video OutputCVI/TVI/AHD/CVBS by one BNC
Gain ControlAuto; Manual
Noise Reduction2D NR
Special Features
FeaturesBLC : BLC/HLC/WDR
WDR DWDR
White Balance : Auto; Manual
Gain Control : Auto; Manual
Noise Reduction : 2D NR
Smart Light : Yes
Electronic Defog : Yes
Warranty

Description

Dahua DH-HAC-HDW1209TLQP-A-LED/ HAC-HDW1209CLQP-A-LED 2M Color HDCVI Dome Camera

Dahua DH-HAC-HDW1209TLQP-A-LED is a 2M full-Color enabled HDCVI Dome Camera Ideal for regular usage. It is featured as a full-colored starlight camera with 20 M illumination distance.Experience 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots. It supports a  maximum of 30fps at 1080P alongside it's CVI/CVBS/AHD/TVI switchablity. With a Fixed lens of 2.8 mm it also supports a 3.6 mm optional lens. This camera is IP67 water and dust resistant. The output capacity is 12V+-30% DC. It has a Progressive scanning System alongside a Minimum Illumination of 0.01Lux/F1.6, 0 Lux (white light on) with Illuminator On/Off Control available in Auto and manual, Illuminator. the featured Lens Type is Fixed-focal with a maximum Aperture of F1.6. The Close Focus Distance is 0.6 m and DORI Distance is  38.6 m (Detect), 15.4 m (Observe), 7.7 m (Recognize),  3.9 m (Identify). The White Balance and Gain Control is available in Auto and manual. The BLC/WDR camera has a smart Light with a switchable Mirror. the Privacy Masking has dual mode and the Off/On readings are 8 area, rectangle. the Operating Temperature range is from -40 degree C to - 60 degree C & The Storage Temperature reading is -40 degree C to 60 degree C. This camera has a Certifications of CE, FCC.Dahua DH-HAC-HDW1209TLQP-A-LED 2M Color HDCVI Dome Camera offers 1 year of Warranty.
