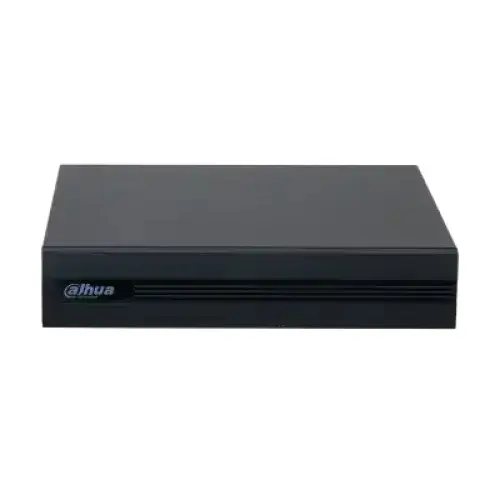

- Dahua 16 Channel Wizsense XVR (1 Sata UP to 6TB) 1080P H.265/H.265+ IP Supports #DH-XVR1B16-I
Dahua 16 Channel Wizsense XVR (1 Sata UP to 6TB) 1080P H.265/H.265+ IP Supports #DH-XVR1B16-I
Special Price:
6,500৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
01808
Quick Details
- MPN: DH-XVR1B16-I
- Model: XVR1B16-I
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 18 channels IP camera inputs
6,500৳
0.0৳
EMI
Price*
Start form 3210৳/month. For Discount
Price
Check here to
view
27 bank emi plans
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded linux |
| Audio and Video | |
| IP Camera Input | 16+2 channels, each channel up to 6MP |
| Two-Way Talk | Reuse audio in/out, RCA |
| Display | |
| Interface | 1 HDMI; 1 VGA |
| Resolution | 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-Screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16 |
| OSD | Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Recording | |
| Compression | AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution | 1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF |
| Record Rate | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps) Sub stream: CIF/QCIF (1 fps–7 fps) |
| Bit Rate | 32 kbps–4096 kbps per channel |
| Record Mode | Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval | 1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
| Video Detection And Alarm | |
| Trigger Event | Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm Input | N/A |
| Relay Output | N/A |
| Playback And Backup | |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode | USB Device/Network |
| Third Party Support | |
| Third Party Support | Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Network | |
| Interface | 1 RJ-45 Port (100 MB) |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smart Phone | iPhone; iPad; Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Storage | |
| Internal HDD | 1 SATA port, up to 6 TB capacity |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 2 USB ports (USB 2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Power | |
| Power Supply | DC 12V/2A |
| Power Consumption | < 10W |
| Component Environment | |
| Operational Conditions | -10°C to +45°C (+14°F to +113°F), 10%–90% (RH) |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F), 0%–90% (RH) |
| Construction | |
| Dimensions | Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm (10.24'' × 9.11'' × 1.87'') |
| Net Weight | 0.89 kg (1.96 lb) |
| Gross Weight | 1.42 kg (3.13 lb) |
Description
Dahua XVR1B16-I 16-Channel Penta-brid Compact Digital Video Recorder
The Dahua XVR1B16-I is a stand-alone recorder that captures HDMI videos as you watch them, without the need for a PC. Be it your games or sports games, Dahua DH-XVR1B16-I records HDMI video at the press of a button or on a schedule, even when your TV is powered off. With the remote control, view the recorded videos at your leisure. The snapshot function lets you capture your favorite moments into inspiring, high-quality pictures. The Dahua DH-XVR1B16-I makes post-production easy as well. The built-in video editor allows you to trim and merge clips seamlessly without a PC. Knowing you'll have the final touch just makes recording so much easier. The Dahua XVR1B16-I comes with a 1-year warranty.
