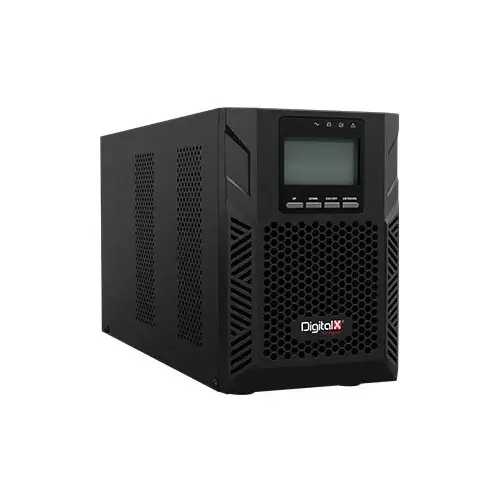

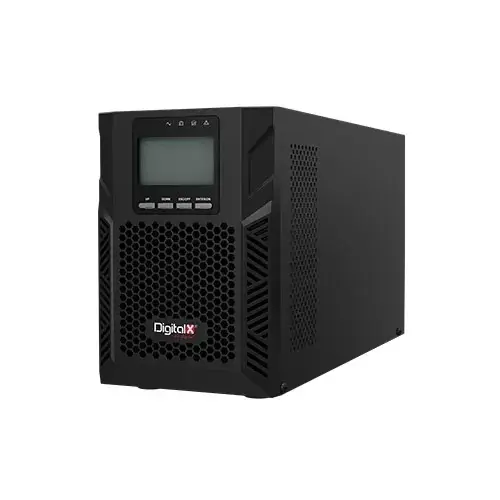

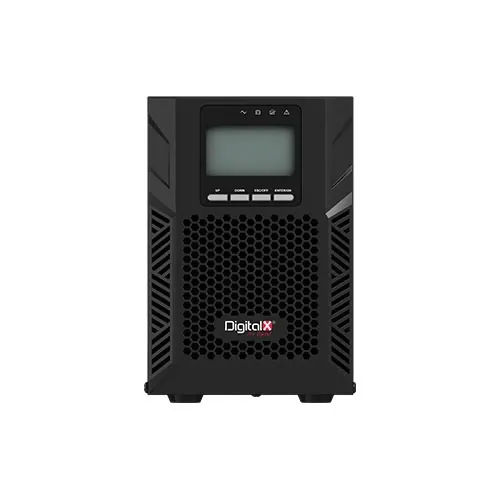

DIGITAL X MP930S 3KVA Standard Backup Online UPS
Quick Details
- Model: MP930S
- Capacity: 3000VA
- Load Capacity: 2700W
- Output Voltage (V): 208/220/230/240Vac
- ECO mode, overload and short circuits protection
33,000৳
0.0৳
| Main Feature | |
| Capacity | 3000VA |
| Display Type | LCD |
| Load Capacity | 2700W |
| Input Voltage | 110～300Vac (176～264Vac @ 100% load) |
| Output Voltage | 208/220/230/240Vac |
| Frequency (Battery Mode) | (50/60±0.1%)Hz |
| Battery | 8 Battery with 12V / 8.2Ah |
| Others | LCD Display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature& Remaining battery backup time Frequency Range: 40～70Hz (50/60Hz Auto-Sensing) Backup Time (50% Load): 16Min, (Full Load): 5Min Charge time: 4 hours (To 90% of full capacity) Efficiency (Approx.): AC Mode / Line Mode: 91% Battery Mode: 88% Crest factor: 3:01 Output Waveform: Pure Sinewave Altitude: <1500m, derating required when＞1500m Humidity: 20~95%RH @ 0~40℃ (Non condensing) Operating Temperature: 0℃~40℃ |
| Input Features | |
| Power Factor | ≥0.99 |
| Voltage Range | 110～300Vac (176～264Vac @ 100% load) |
| Output Features | |
| Voltage Range | 208/220/230/240Vac |
| Power Factor | 0.9 |
| Type of Wave | Pure Sinewave |
| Physical Specification | |
| Dimension | 191×460×337mm |
| Weight | Net: 26.01kg Gross: 27.09Kg |
| Manufacture Warranty | |
| Warranty | 01-Year |
Description
Digital X MP930S 3KVA Standard Backup Online UPS
The Digital X MP930S 3KVA Standard Backup Online UPS is a powerful Digital X MP930S 3KVA Online UPS built for dependable power protection. This Digital X MP930S Online UPS guarantees continuous backup for vital systems with a 3000VA (2700W) capability. It has eight 12V/8.2Ah batteries, giving 16 minutes of backup at 50% load and 5 minutes at full load, making it a solid alternative for power stability. The Digital X MP930S 3KVA UPS runs with 91% efficiency in AC mode and 88% in battery mode, decreasing power loss while optimizing energy economy. Its LCD display enables real-time monitoring of input/output voltage, frequency, load %, battery condition, internal temperature, and remaining backup time, assuring optimum performance. Supporting a broad input voltage range of 110-300V AC and maintaining ±1% output voltage control, this Digital X MP930S UPS assures a steady power supply. The Digital X 3KVA Online UPS ensures smooth operation for delicate devices with its pure sinewave output and sophisticated frequency-detecting technology (40-70Hz auto-sensing). This Digital X Online UPS conforms with IEC/EN 62040-1 and IEC/EN 62477-1 standards, giving sophisticated safety features. The alarm system gives notifications for battery mode, low battery, overload, and defects, making the Digital X MP930S 3KVA Online UPS a secure and user-friendly power solution. Built to resist 0℃ to 40℃ working temperatures and 20-95% RH humidity (non-condensing), it is exceptionally robust. The small size (191×460×337mm) and lightweight construction (26.01kg net weight) make it an efficient and manageable power backup solution. With zero transfer time from AC to battery mode and a 4ms inverter to skip transfer, the Digital X MP930S Online UPS is excellent for high-performance PCs, servers, and networking equipment. This type provides outstanding dependability, efficiency, and power protection for a range of applications, whether you're searching for a Digital X MP930S 3KVA Online UPS or a Digital X 3KVA Online UPS.
