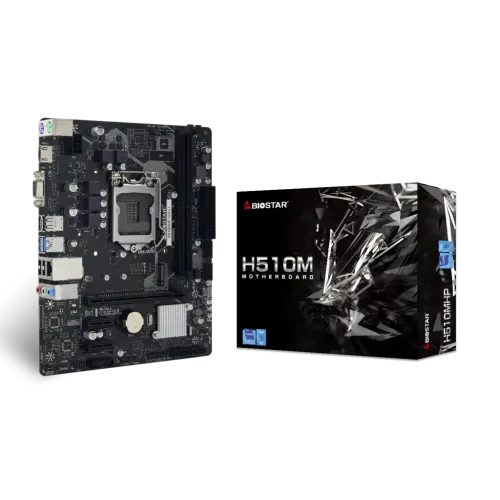

BIOSTAR H510MHP 10th and 11th Gen Micro ATX Motherboard
Quick Details
- Model: H510MHP
- Supported CPU: 10th /11th Generation Intel Core Processor
- Supported RAM: 2x DIMM, DDR4 3200 up to 64 GB
- Graphics Output: 1 x HDMI, 1 x VGA Port
- Features: 1 x M.2 Slot, Realtek ALC887
8,500৳
0.0৳
| Basic Information | |
| Supported CPU | Socket 1200 for 10th / 11th Gen Intel Core, Pentium and Celeron processors |
| Chipset | Intel H510 |
| Form Factor | Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L ) |
| Audio | Realtek ALC887 7.1 Channels, High Definition Audio |
| Expansion Slots | |
| PCI | 2 x PCIe 3.0 x1 Slot 1 x PCle 3.0/4.0 x16 Slot |
| Memory | |
| Type | DDR4 |
| Slots | 2 x DIMM |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 Each DIMM supports non-ECC 4/8/16/32GB DDR4 module |
| Maximum Memory | Up to 64 GB |
| Graphics | |
| Graphics | Supports DX12 Supports HDCP |
| Connector & Ports | |
| HDMI | 1 x HDMI Port |
| VGA (s) | 1 x VGA Port |

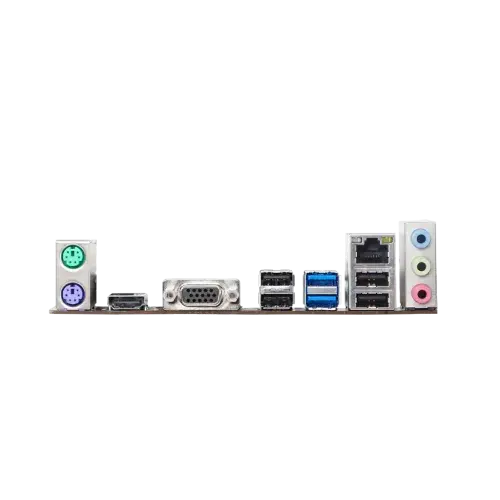

| USB (s) | 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers) |
| LAN Port (s) | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
| Supported Storage | 4 x SATA III Connector (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module. Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD |
| Audio | 3 x Audio Jack |
| Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 1 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Clear CMOS Header 1 x COM Port Header |
| Others | |
| Bundled Software | BullGuard |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
BIOSTAR H510MHP 10th and 11th Gen Micro ATX Motherboard

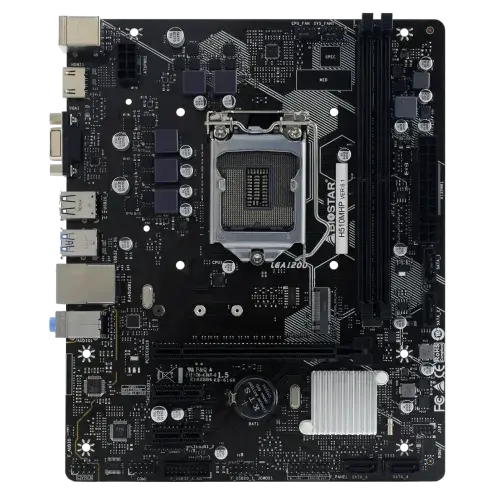

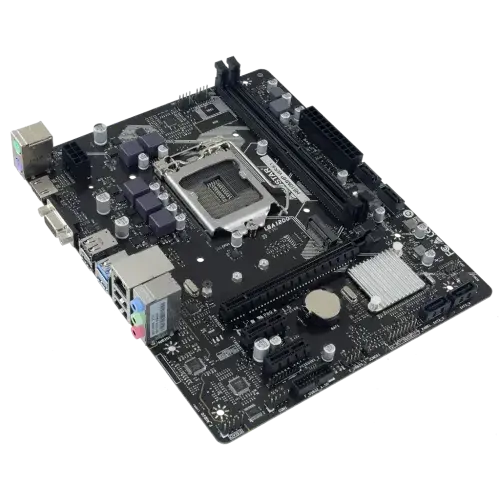

The BIOSTAR H510MHP is a micro ATX motherboard designed for 10th and 11th gen Intel Core processors. It features an Intel H510 single-chip architecture, allowing for efficient and stable performance. It offers a 5-phase VRM design with high-quality power components such as low RDS (on) Mosfet for lower temperatures and has the advantage to raise the overclocking ability. The BIOSTAR H510MHP motherboard supports 2-DIMM DDR4 memory, with speeds of up to 3200/ 2933/ 2666/ 2400/2133/ 1866 and a maximum capacity of 64 GB. It also supports PCIe 4.0 and PCIe M.2 (32Gb/s) for high-speed data transfer and storage. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It's 3 times faster compared with PCIe M.2 10Gb/s. It comes with USB 3.2 Gen1 for quick data transfer and device connectivity. The Onboard HDMI connector allows full video & audio support. It has industry-leading high-definition video quality. The BIOSTAR H510MHP motherboard provides high-quality sound with minimal loss of audio fidelity.
