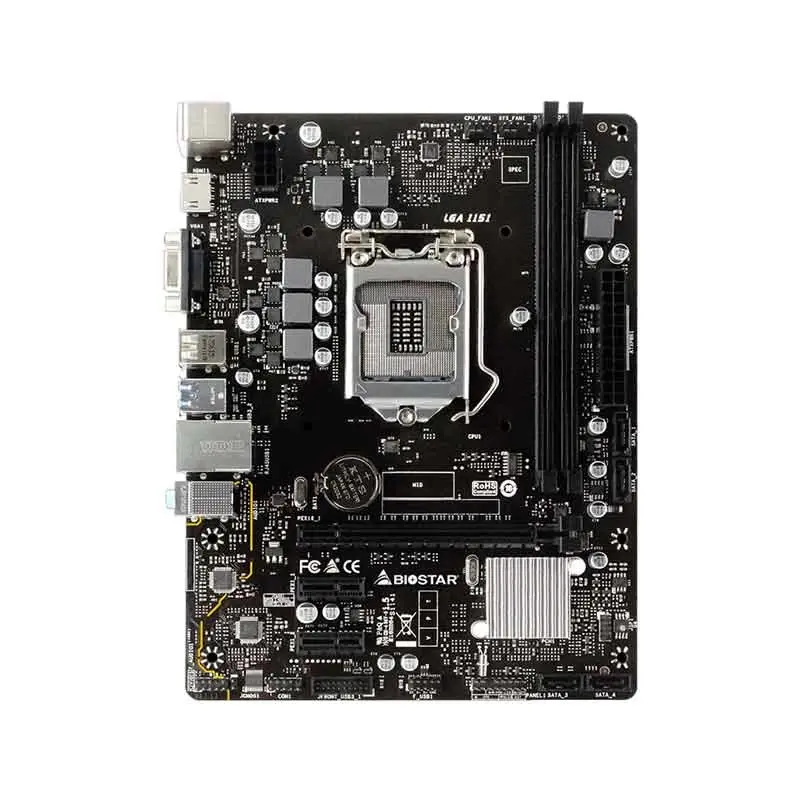

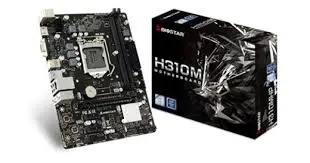

BIOSTAR H310MHP DDR4 Motherboard
BIOSTAR H310MHP DDR4 Motherboard

BIOSTAR H310MHP DDR4 Motherboard

0.0
(0)
Special Price:
7,000৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
00982

Quick Details

  • Supports 9th and 8th Gen Intel Processor
  • Supports Socket 1151
  • Supports DDR4 2666 Memory
  • Max. capacity memory: 64GB

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Main Features
AudioHD Audio Jacks: Line in / Front Speaker / Microphone
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.05V Voltage Multi-adjustment
Form Factor- Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm - Solid Capacitor design
Generel information
Basic InformationSupported CPU: Supports 9th and 8th Gen Intel Core Processors (Socket 1151) Chipset: Intel H310
D-Sub (s)1 x D-Sub Port
DVI-D (s)1 x DVI-D Port
Expansion SlotsPCI: - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* - 1 x PCI Express 2.0 x1 Slot
MemoryType: Dual Channel DDR4 Memory Technology Slots: 2 x DDR4 DIMM Slots Supported Memory: Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) 2.0 15μ Gold Contact in DIMM Slots Maximum Memory: 64GB
TPM (Trusted Platform Module )- 1 x TPM Header
Graphics Specifications
Graphics- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics - DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
Connector & ports
HDMI1 x HDMI Port
Internal I/O Ports- 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection) - 1 x Performance Mode / Easy OC Header
LAN Port (s)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB (s)-4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Warranty Information
Warranty03 years

Description

Biostar Intel Chipset H310MHP Socket Motherboard

The Biostar Intel Chipset H310MHP Socket Motherboard is a micro-ATX form factor motherboard that supports 9th and 8th Gen Intel Core, Pentium, and Celeron processors with a maximum thermal design power of 95 watts. It has a dimension of 226mm x 171mm and supports up to 32GB memory with Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz speeds. The memory module supported by this motherboard is non-ECC and available in 4/8/16GB capacities.
This motherboard is equipped with an Intel H310 chipset that supports PCIe 3.0 x16 slot and PCIe 2.0 x1 slots, providing expansion options for graphics cards, network cards, and other peripherals. It also supports 4 SATA III connectors, each with 6Gb/s data transfer rates, making it an ideal choice for users who require high-speed storage devices.
The Biostar Intel Chipset H310MHP Socket Motherboard features an integrated audio codec, ALC887, which supports 7.1 channels of high definition audio. It has an HDMI and a VGA port, which supports DX12 and HDCP, respectively. Additionally, it has a LAN port that supports 10/100/1000 Mb/s auto-negotiation, half/full duplex capability.

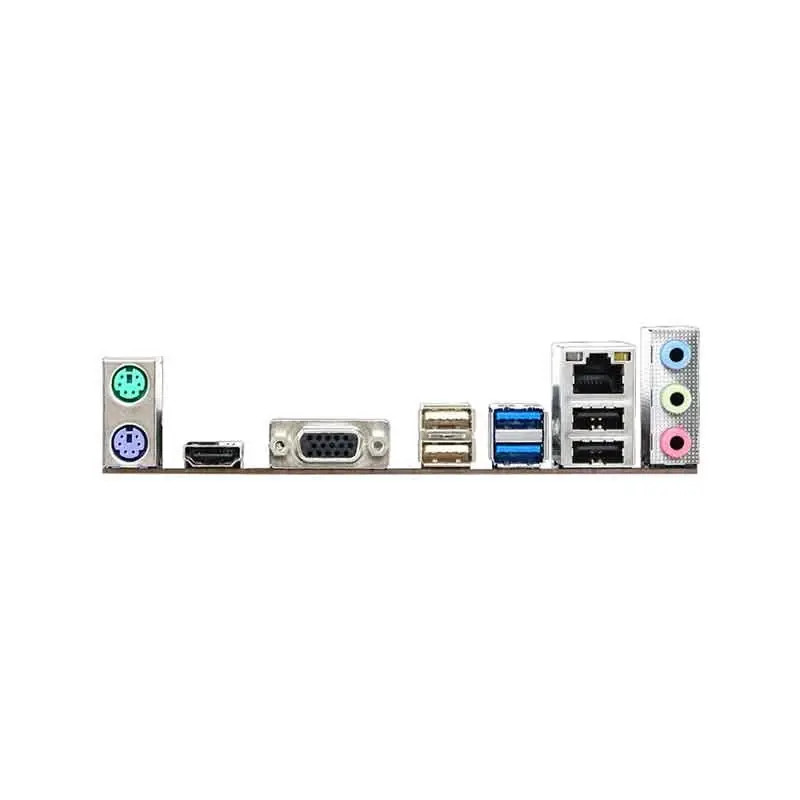

This motherboard has a comprehensive set of external I/O ports, including a PS/2 mouse port, PS/2 keyboard port, HDMI port, VGA port, LAN port, 4 USB 2.0 ports, and 2 USB 3.2 (Gen1) ports. It also has internal I/O ports, including 4 SATA III connectors, 1 USB 2.0 header, 1 USB 3.2(Gen1) header, 1 8-pin power connector, 1 24-pin power connector, 1 CPU fan connector, 1 system fan connector, 1 front panel header, 1 front audio header, 1 clear CMOS header, and 1 COM port header.
The Biostar Intel Chipset H310MHP Socket Motherboard also comes with several accessories, including 2 SATA cables, 1 I/O shield, 1 DVD driver, and 1 quick guide. It supports Windows 7/10/11 (64-bit) and comes with a 3-year warranty.
Overall, the Biostar Intel Chipset H310MHP Socket Motherboard is a reliable and affordable option for users who require a powerful and versatile micro-ATX motherboard. It provides a comprehensive set of features and supports various expansion options, making it suitable for different computing needs.

Features

  • CPU Compatibility: Supports Socket 1151 for 9th / 8th Gen Intel Core, Pentium, and Celeron processors with a maximum TDP of 95Watt.
  • Chipset: Intel H310 chipset.
  • Memory Compatibility: Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 with a maximum capacity of up to 32GB.
  • PCIe Slots: 1x PCIe 3.0 x16 Slot and 2x PCIe 2.0 x1 Slots.
  • Storage: 4 x SATA III Connectors (6Gb/s).
  • LAN: Realtek RTL8111H LAN controller with 10/100/1000 Mb/s auto-negotiation and half/full duplex capability.
  • Audio: Integrated ALC887 7.1 channels, high definition audio, and support for HD Audio.
  • USB Ports: 4x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal header), and 6x USB 2.0 ports (4 on rear I/Os and 2 via internal header).
  • Form Factor: Micro ATX form factor with dimensions of 226mm x 171mm (W x L).
  • Other Features: Comes with BIO-FLASHER, 2 x SATA cables, 1 x I/O shield, 1 x DVD driver, and 1 x quick guide. Supports Windows 7/10/11(64bit) operating systems and comes with a 3-year warranty.
