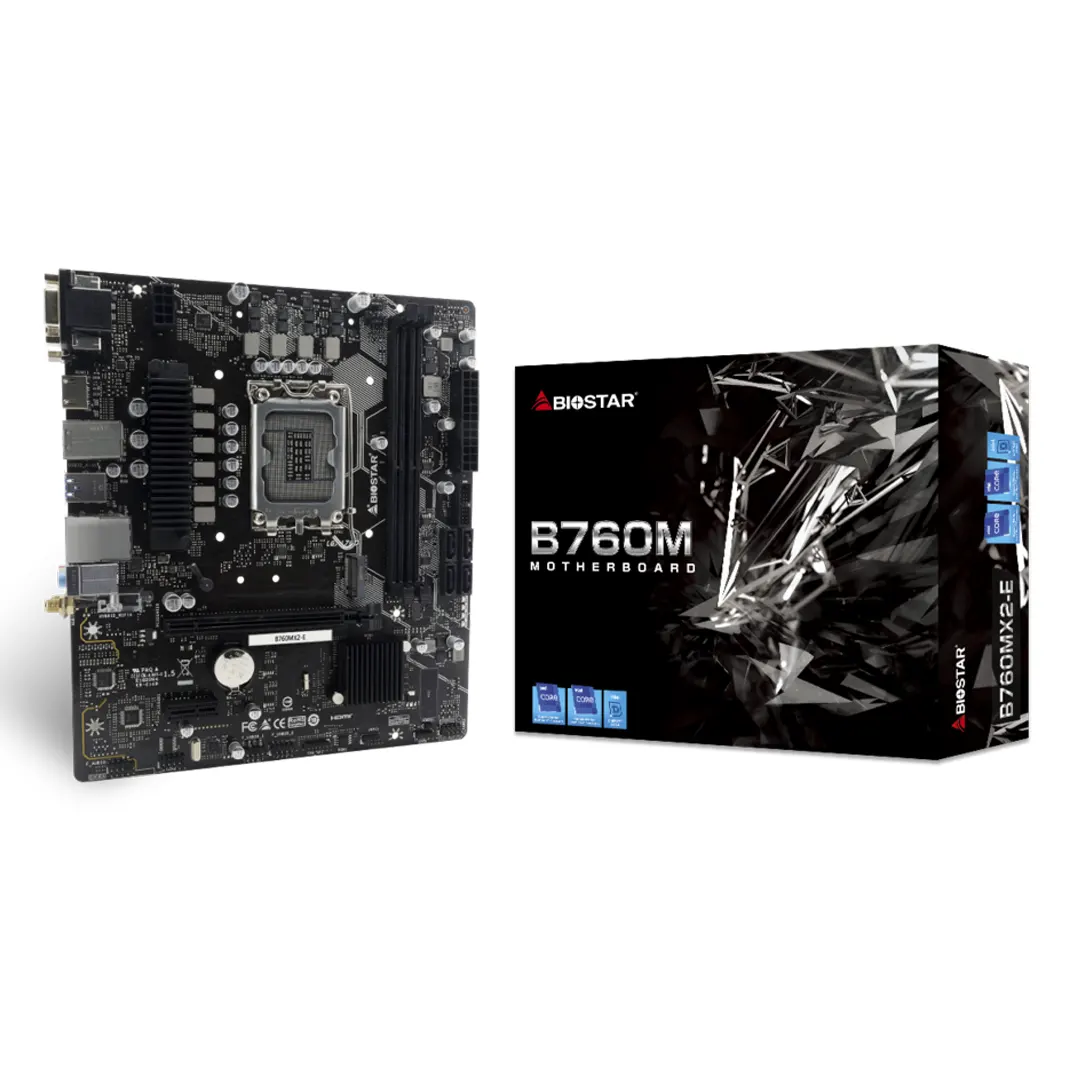

BIOSTAR B760MX2-E DDR5 Motherboard
Quick Details
12,000৳
0.0৳
| Mainboard | |
| Chipset | Intel B760 |
| Memory | |
| Memory | Supports Dual Channel DDR5 4800/ 5200(OC)/ 5400(OC)/ 5600(OC)/ 6000+(OC) 2 x DDR5 DIMM Memory Slot, Max. Supports up to 96 GB of Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module Support Intel Extreme Memory Profile (XMP) memory modules |
| Networking & Connectivity | |
| LAN | Realtek 8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| Ports | |
| Slots | INTEL 12th/13th/14th Processors 1 x PCIe 4.0 x16 Slot INTEL B760 Chipset 1 x PCIe 3.0 x1 Slot |
| Internal I/O Ports | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header * M.2 (E key) Wi-Fi card is not provided |
| External I/O Ports | 1 x WIFI Antenna Port 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI 1 x VGA+DVI Port 2 x USB 3.2 (Gen1) port 4 x USB 2.0 port 1 x LAN port 3 x Audio Jack |
| USB | 4 x USB 3.2 (Gen1) port (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers) |
| Others | |
| Other Features | OS SUPPORT: Supports Windows 10 (64bit) / 11(64bit) H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| Physical Specification | |
| Form Factor | Micro ATX Form |
| Dimension | Micro ATX Form Factor Dimension: 20.8cm x 23.6cm ( W x L ) |
| Warranty Information | |
| Warranty | 3 Year's |
Description
BIOSTAR B760MX2-E DDR5 12th/13th mATX Gaming Motherboard in BD
The BIOSTAR B760MX2-E DDR5 12th/13th mATX Gaming Motherboard, available at Munshiganj IT, is a powerhouse designed to support 12th/13th Generation Intel Core processors, delivering exceptional performance for gaming and intensive tasks. This motherboard is built on the Intel B760 chipset, boasting support for cutting-edge DDR5 memory up to 96 GB with a maximum frequency of 6000+MHz when overclocked, providing users with unparalleled speed and efficiency. With dual-channel DDR5 4800/5200/5400/5600(OC) support and Intel Extreme Memory Profile (XMP) compatibility, it ensures seamless multitasking and enhanced gaming experiences. The board includes 2 x DDR5 DIMM slots, each supporting non-ECC 8/16/24/32/48 GB DDR5 modules. Storage-wise, it offers 1 x M.2 socket and 4 x SATA III (6Gb/s) ports powered by the Intel B760 chipset, enabling lightning-fast data transfer rates and supporting various SSD modules. The motherboard integrates Realtek 8125B LAN, providing high-speed connectivity at 10/100/1000/2500 Mb/s with auto-negotiation and half/full duplex capability. For immersive audio, it features the Realtek ALC897 audio codec, delivering 7.1 channels of high-definition audio. The board also includes an array of USB ports, including 4 x USB 3.2 (Gen1) and 8 x USB 2.0 ports, ensuring seamless connectivity for various peripherals. Additionally, it supports Intel processors with a PCIe 4.0 x16 slot and includes a PCIe 3.0 x1 slot for expansion. This mATX form factor motherboard comes equipped with various internal I/O connectors, including multiple SATA III connectors, USB headers, power connectors, fan connectors, and more, offering extensive compatibility and expandability. The BIOSTAR B760MX2-E motherboard supports Windows 10 (64bit) and 11(64bit) operating systems and comes bundled with essential accessories like SATA cables, I/O shield, DVD driver, and a quick guide for easy installation.
