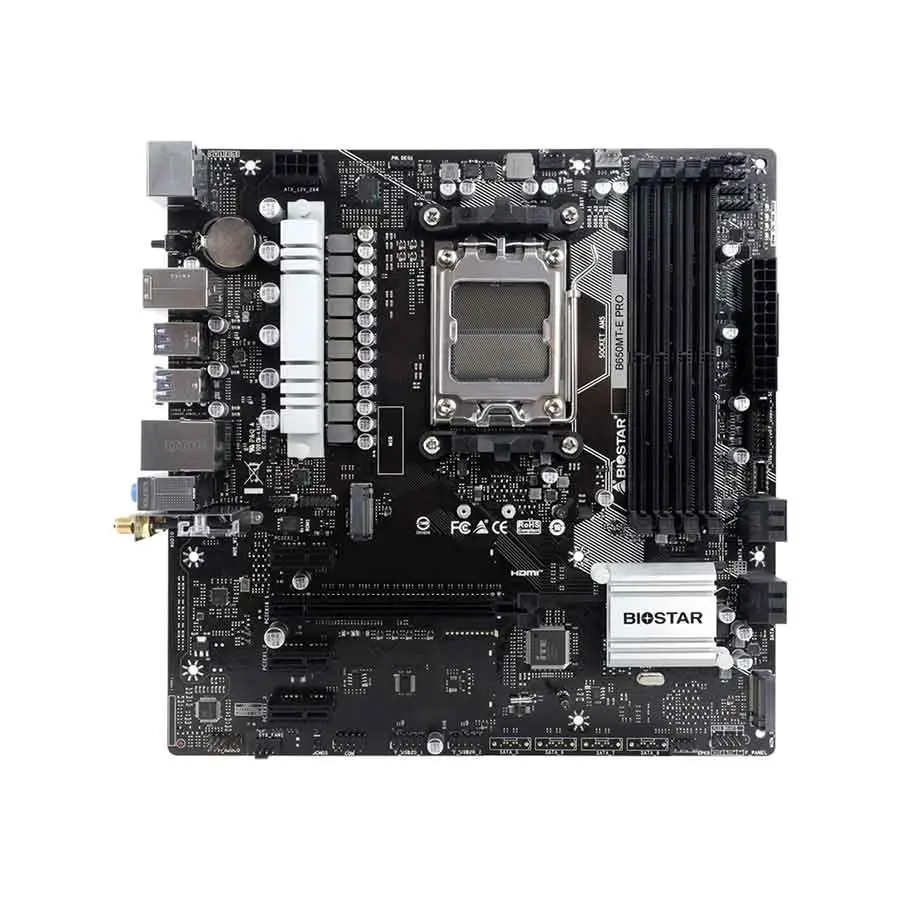

BIOSTAR B650MT-E PRO DDR5 AMD AM5 Socket Motherboard
Quick Details
16,000৳
0.0৳
Processor | |
Supported CPU | Socket AM5 support AMD Ryzen 7000 / 8000 series Processors Support for future AMD Ryzen processors with BIOS update * Please refer to www.biostar.com.tw for CPU support list. |
Mainboard | |
Chipset | AMD B650 |
Memory | |
Memory | AMD Ryzen 7000 / 8000 series Processors: Supports Dual Channel DDR5 6000+(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 192 GB Memory Each DIMM supports non-ECC 8/ 16/ 24/ 32/ 48 GB DDR5 module * Please refer to www.biostar.com.tw for Memory support list. |
Storage | |
Storage | Total support 2 x M.2 Socket and 4 x SATA (6Gb/s) ports AMD Ryzen 7000 Series Processors 1 x M.2 (Key M) Socket (M2M_CPU) : Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports PCIe 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD AMD B650 Chipset 1 x M.2 (Key M) Socket (M2M_SB) : Support M.2 Type 2280 SSD module Support PCIe 4.0 x 4 (64Gb/s) - NVMe / AHCI SSD 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10 |
Networking & Connectivity | |
LAN | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
Ports | |
I/O Port | 2 x WiFi Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x BIOS update Button 1 x HDMI Port (HDMI1.4) 1 x DP Port (DP1.2) 1 x USB 3.2 (Gen2) Type-C Port 1 x USB 3.2 (Gen2) Type-A Port 4 x USB 3.2 (Gen1) Type-A Ports 2 x USB 2.0 Type-A Ports 1 x 2.5G LAN port 3 x Audio Jack |
Internal I/O Ports | 4 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type-C Header (each header supports 1 USB 3.2 (Gen2) Type-C ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E Key) Wi-Fi card is not provided |
USB | 2 x USB 3.2 Gen2 Type-C ports (1 on rear I/Os and 1 via internal headers) 1 x USB 3.2 Gen2 port (1 on rear I/Os) 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
Special Features | |
Audio/Video Features | ALC897 7.1 Channels, High Definition Audio, Hi-Fi |
Speacial Features | H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
Others | |
Accessories | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x Quick Guide 1 x WiFi antenna accessories |
Other Features | INTEGRATED VIDEO: By CPU model Supports DX12 Supports HDCP |
Physical Specification | |
Expansion Slots | AMD Ryzen 7000 / 8000 Series Processors 1 x PCIe 4.0 x 16 Slot (x16 or x8/x8 mode) 2 x PCIe 4.0 x 1 Slot (x1 mode) AMD B650 Chipset 1 x PCIe 4.0 x 1 Slot (x1 mode) |
Form Factor | mATX |
Dimension | 24.4cmx24.4cm ( W x L ) |
Technical Info | |
Brand | Biostar |
Supported OS | Supports Windows 10(64bit) / 11(64bit) Biostar reserves the right to add or remove support for any OS with or without notice. |
Warranty Information | |
Warranty | 3 Years |
Description
Technical Details
The Biostar B650MT-E PRO AMD AM5 mATX Motherboard is a powerful and versatile component designed to support AMD Ryzen™ 7000 and 8000 series processors, with potential support for future Ryzen processors through BIOS updates. It features an AMD B650 chipset and supports Dual Channel DDR5 memory with speeds up to 6000+(OC) and a maximum capacity of 192 GB across four DIMM slots. Integrated video support varies by CPU model, with compatibility for DirectX 12 and HDCP. For storage, it includes two M.2 sockets and four SATA 6Gb/s ports, supporting both NVMe and AHCI SSDs. The motherboard is equipped with Realtek RTL8125B LAN for high-speed networking and ALC897 audio codec for 7.1-channel high-definition sound. It also offers a comprehensive array of USB ports, including USB 3.2 Gen2 Type-C and Type-A, USB 3.2 Gen1, and USB 2.0. Expansion slots are available for PCIe 4.0, providing flexibility for additional hardware.
Highlights
- Supports AMD Ryzen 7000/8000 series processors
- Dual Channel DDR5 with speeds up to 6000+(OC)
- Two M.2 sockets and four SATA 6Gb/s ports
- Realtek RTL8125B 2.5G LAN
- ALC897 7.1-channel high-definition audio
