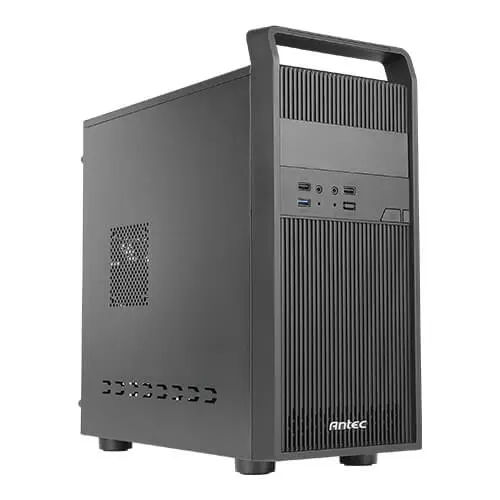

Antec NX110M Mini Tower Micro-ATX Gaming Case
Quick Details
- Model: NX110M
- Mainboard Support: Micro-ATX
- Form Factor: Mini Tower
- Side Panel: Solid Side Panel
- Materials: SPCC / ABS
Case Type | |
Type | Mini Tower |
Tempered Glass Panel | Solid Side Panel |
Motherboard Support | Micro-ATX |
External Features | |
Color(s) | Black |
Weight | Net Weight : 3KG Gross Weight : 3.6KG |
Dimensions | 380 x 173 x 367mm(DxWxH) |
Expansion Slots | 4 |
Fan Support | Front: 1 x 120 mm Side Panel: 1 x 80mm Rear: 1 x 80mm |
Pre- Installed Fans | 1 x 80mm fan in rear |
Drive Bays | 5.25": 1 3.5": 2 2.5": 2 |
I/O Port | Power Reset Mic/HD- Audio USB 3.0 x 1 USB 2.0 x 2 |
Additional Feature | |
PSU | ≤ 200 mm |
Side Panel | Solid Side Panel |
Clearance Space | |
Maximum CPU Cooler Height | ≤ 130 mm |
Maximum Graphics Card Length | ≤ 310mm |
Warranty | |
Warranty | No Warranty |
Description
Antec NX110M Mini Tower Micro-ATX Gaming Case
The new Antec NX110M Mini Tower Micro-ATX Gaming Case is speacially built for gaming. It is NX Series-Micro-ATX mini tower gaming case.
Creation of Value & Function
Antec NX110M Mini Tower Micro-ATX Gaming Case combines with a bevy of in-demand features, like - USB 3.0 connectivity, ample storage drive bays, room for expansion, and includes one 80 mm fan in the rear.
Fan:
Here, 1 x 80mm fan in rear is Included Fan and also support 1 x 120 mm in the Front, 1 x 80mm in side panel and 1 x 80mm in Rear.
I/O Ports:
This Antec NX110M case supports Micro-ATX motherboard, and comes with Mini Tower Form Factor, power, reset, USB3.0 x 1, USB2.0 x 2, MIC/ HD-AUDIO Front Access & Controls, Solid Side Panel. The latest Antec NX110M Mini Tower Micro-ATX Gaming Case has no warranty.
