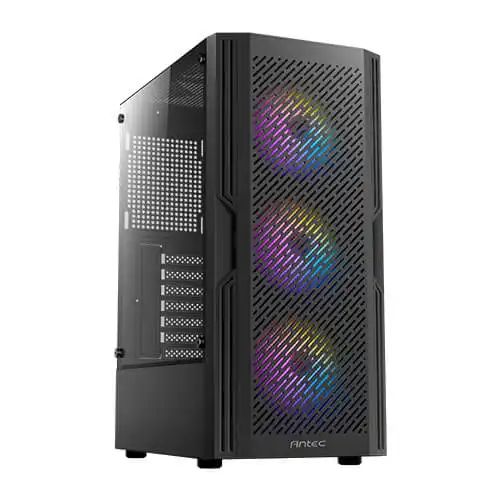

Antec AX20 Mid-Tower ATX Gaming Case
Quick Details
- Model: AX20
- Mainboard Support: ATX, Micro-ATX, ITX
- Form Factor: Mid Tower
- Side Panel: Tempered Glass
- 3 x 120 RGB fixed fans pre-installed in front
| Case Type | |
| Type | Mid Tower |
| Tempered Glass Panel | Yes |
| Motherboard Support | ATX, Micro-ATX, ITX |
| External Features | |
| Color(s) | Black |
| Material | Steel+Plastic |
| Weight | Net Weight: 4 Kgs Gross Weight: 4.71 Kgs |
| Dimensions | 358 x 207 x 451mm (DWH) |
| Front Ports | Power,Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO |
| Expansion Slots | 7 |
| Radiator Support | Front: 120 / 140 / 240 / 280mm |
| Fan Support | Front: 3 x 120mm / 2 x 140mm Top: 2 x 120mm Power supply: 2 x 120mm Rear: 1 x 120mm |
| Pre- Installed Fans | 3 x 120 RGB fixed model fans in front |
| Drive Bays | 3.5" /2.5": 2 / 1 2.5": 2 |
| Additional Feature | |
| Side Panel | Tempered glass |
| Clearance Space | |
| Maximum CPU Cooler Height | ≤ 155mm |
| Maximum Graphics Card Length | ≤ 270mm |
| Maximum PSU Length | ≤ 170mm(with HDD) ≤ 295mm(without HDD) |
| Warranty | |
| Warranty | No Warranty |
Description
Antec AX20 Mid-Tower ATX Gaming Case
The Antec AX20 is a mid-tower gaming case that supports ATX, Micro-ATX, and ITX motherboards. It has a slanted bar air intake design with a highly dense mesh for maximum heat dissipation. The half-view tempered glass side panel design lets you show off your gaming setups without being hindered. The AX20 supports up to 8 x 120 mm fans simultaneously, giving users a variety of cooling options. It features a sleek and modern design, with a large tempered glass side panel that provides a clear view of the system's components. The case also has a black exterior with a clean, minimalist look that will complement any gaming setup.

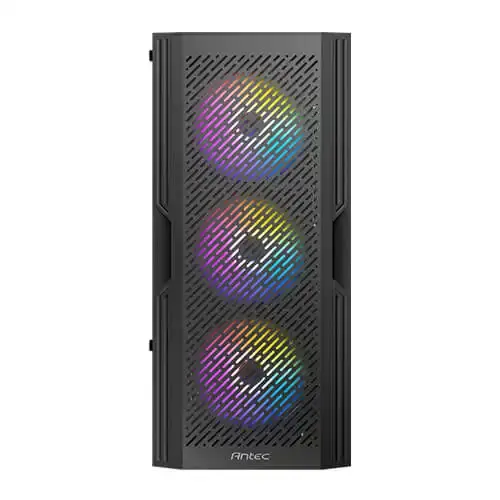

Up to 8 x 120mm Fans Simultaneously
The Antec AX20 Mid-Tower Gaming Case supports up to 8 x 120mm fans simultaneously, which provides excellent cooling for high-performance systems. It also features a spacious interior for easy installation of components and a sleek, modern design. This allows for efficient heat dissipation and helps to keep the system running at optimal temperatures.

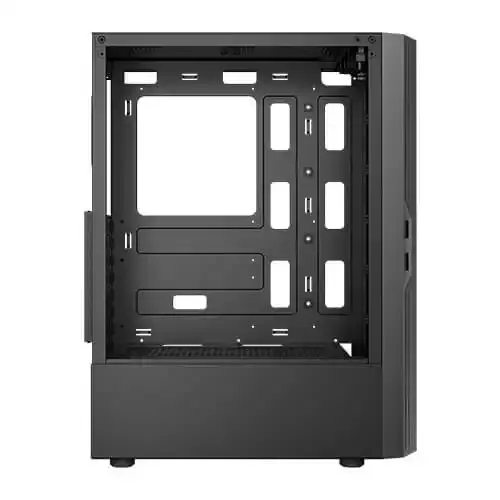

Expansion Clearance
The Antec AX20 supports ATX, Micro-ATX, and Mini-ITX motherboards, and has room for graphics cards up to 270mm in length. This allows for easy installation of high-performance components and provides plenty of room for future upgrades.

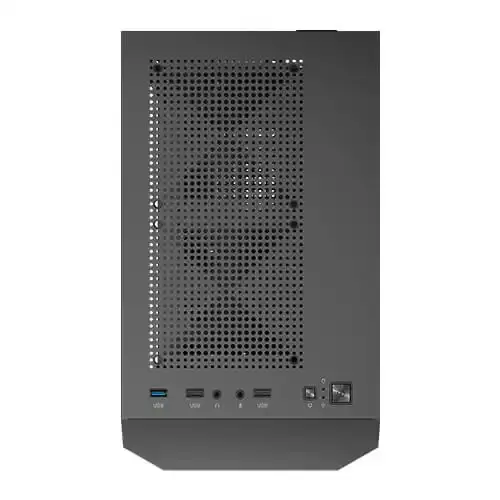

Front Access & Controls
The Antec AX20 has 2x USB 2.0 ports, 1x USB 3.0 port, an audio in/out, and a power button on top of the case for easy access.
