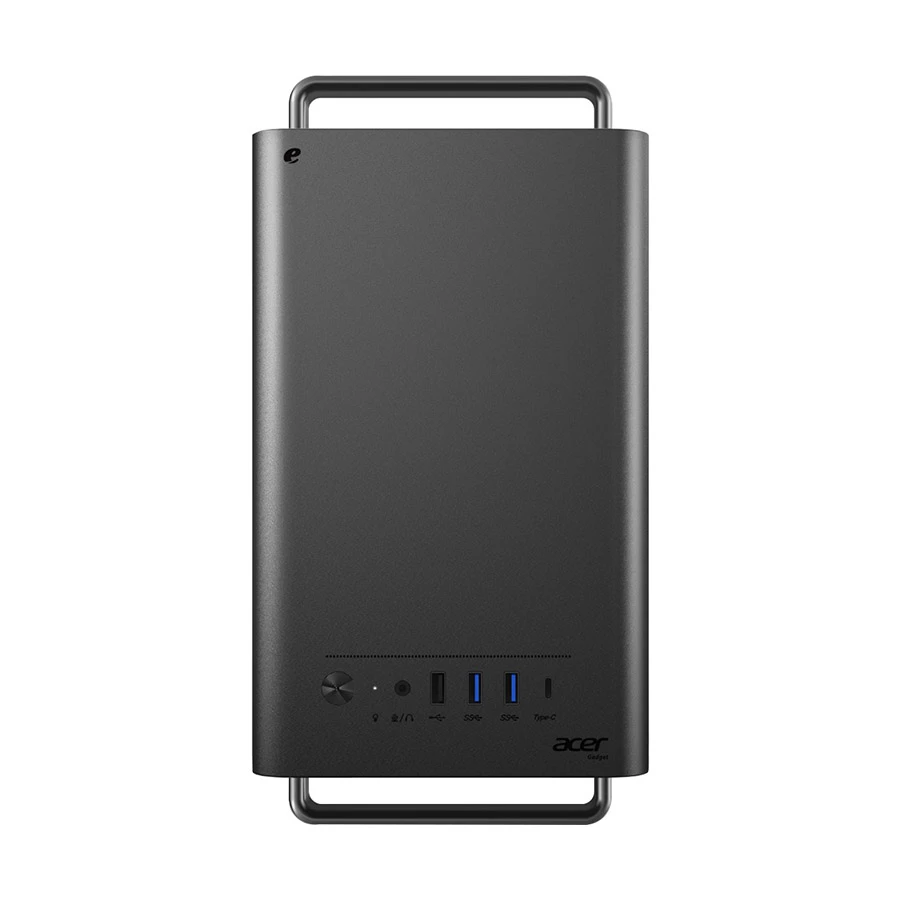

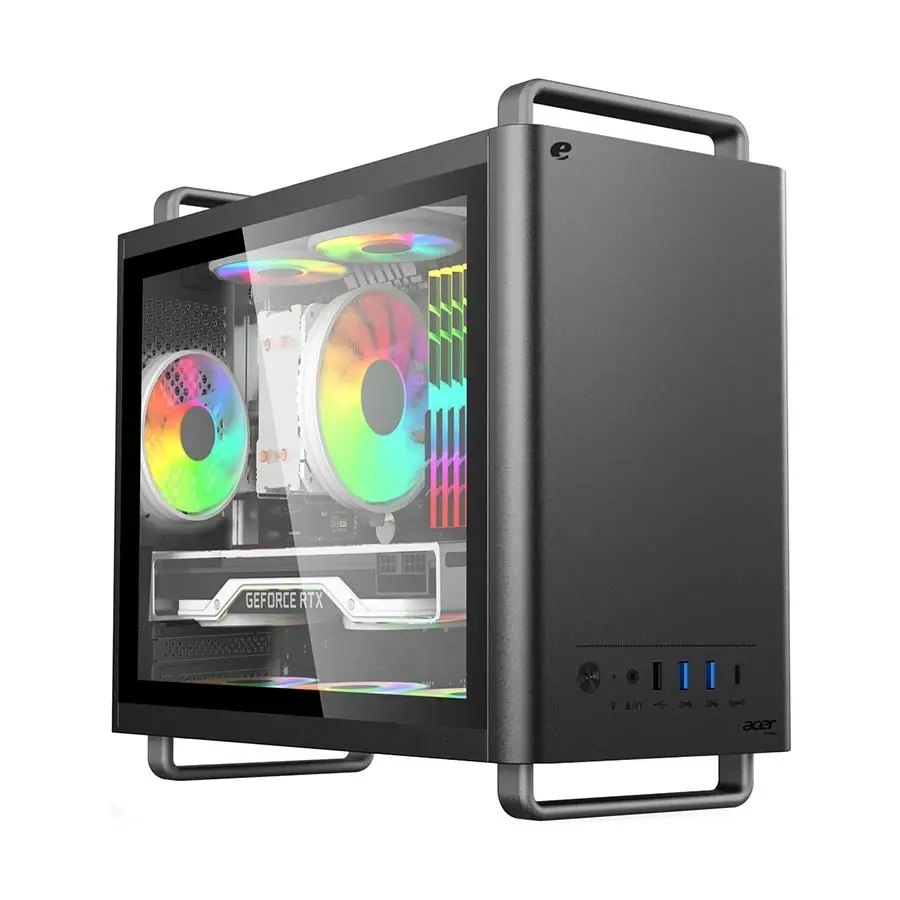

Acer U320BG Mid Tower Business Desktop Casing
Quick Details
- A grade SPCC 0.8mm Thickness
- VGA Card Length: 310mm
- CPU Max. Height: 135mm
- Left Side Panel Tempered Glass
3,600৳
0.0৳
Brand | Acer |
Model | Acer U320BG |
Series | Business |
Case Type | Mid Tower |
Technical Info | |
Supported Motherboard Type | Micro ATX / ITX |
Supported LED Strip | No |
Fan / Light Controller | No |
Back-Connect Supported | No |
Graphics-Card Length | 310mm |
Supported CPU Cooler | Air Cooler |
CPU Cooler Height | 135mm |
PSU Length | 240mm |
Thickness | 0.8mm |
Ports & Slots | |
Front/Top USB Port | Type C x1 + USB 3.0 x2 + USB 2.0 x1 |
Front/Top Audio Port | HD Audio |
3.5 Inch Drive Bay | 1 |
2.5 Inch Drive Bay | 2 |
Optical Drive Bay | No |
Memory Card Slot | No |
Fan & Radiator Details | |
Cooling Fan (Built-In) | 1 |
Additional Fan Slot | 5 |
Pre-Installed Fan Size | 90mm |
Supported Fan Size | Top: 2 x 80mm / 2 x 90mm, Rear: 1 x 80mm / 1 x 90mm, Bottom: 3 x 90mm / 2 x 120mm |
Lighting Fan | RGB |
Power | |
Power Supply (Built-In) | No |
Power Supply Type | ATX / Micro-ATX (Not Included) |
Approx. Power Consumption | 10W |
Physical Description | |
Transparent Side Window | Yes |
Case Windowed | Tempered Glass Window |
Buttons | Power |
Number of Buttons | 1 |
Material | Tempered Glass + SPCC |
Color | Black |
Dimensions | 350 x 165 x 310mm |
Handle | No |
Warranty | No warranty |
Additional Info | |
Others | Smart compact design, Left side panel tempered glass, 1x 90mm RGB rear fan, 0.8mm SPCC, Aluminum grip & stand, Supports 240mm water cooling, PSU: Not Included |
Country Of Origin | Taiwan |
Description
Acer U320bg Black Micro Atx Business Case
The Acer U320bg Black Micro ATX Business Case combines sleek design with excellent functionality, making it an ideal choice for building high-performance business and office systems. This Micro ATX/ITX case is crafted from A-grade SPCC material with 0.8mm thickness, ensuring durability and long-lasting protection for your PC components. Its black finish adds a professional touch, blending seamlessly into any workspace environment. Designed to support VGA cards up to 310mm in length, this case provides ample room for powerful graphics cards, making it a versatile option for both business computing and light gaming or content creation. The CPU cooler height can go up to 135mm, offering flexibility in selecting cooling solutions that best meet your performance needs. The front I/O panel offers modern connectivity options, including USB Type-C x1, USB 3.0 x2, USB 2.0 x1, and HD Audio ports, allowing quick and easy access to your devices. With dimensions of 350x165x310mm, this case offers the perfect balance of space and compactness, supporting 1 HDD and up to 3 SSDs for ample storage expansion. The Acer U320bg is a powerful and efficient case, ideal for building a reliable workstation or business PC that meets all your computing demands.
Acer U320bg Black Micro Atx Business Case Features
Here are the key features of the Acer U320bg Black Micro ATX Business Case:
- VGA Length Limit: Supports graphics cards up to 310mm in length, making it compatible with most modern GPUs.
- Motherboard Support: Compatible with Micro ATX and ITX motherboards, providing flexibility for various system builds.
- Top cooling: Supports 2x 80mm fans or 2x 90mm fans for improved airflow.
- Rear cooling: Supports 1x 80mm fan or 1x 90mm fan for additional cooling.
- Bottom cooling: Can accommodate 3x 90mm fans or 2x 120mm fans for enhanced ventilation.
- Left side panel: Supports a 240mm water cooler, ideal for users seeking liquid cooling solutions.
- CPU Cooler Height Limit: The case allows for CPU coolers up to 135mm in height, accommodating most air cooling solutions.
- Compact Dimensions: Measures 350mm x 165mm x 310mm, making it compact and space-efficient for smaller workspaces.
- Form Factor: Supports both ATX and Micro ATX power supply units (PSU), offering compatibility with a variety of PSU sizes.
- Material: Built from A-grade SPCC steel with a 0.8mm thickness, ensuring durability and stability.
- Storage Options: Includes 1x HDD and 2x SSD slots, or alternatively, 3x SSD slots for flexible storage configurations.
These features make the Acer U320bg Black Micro ATX Business Case a versatile, durable, and well-cooled option for building efficient and powerful systems.
