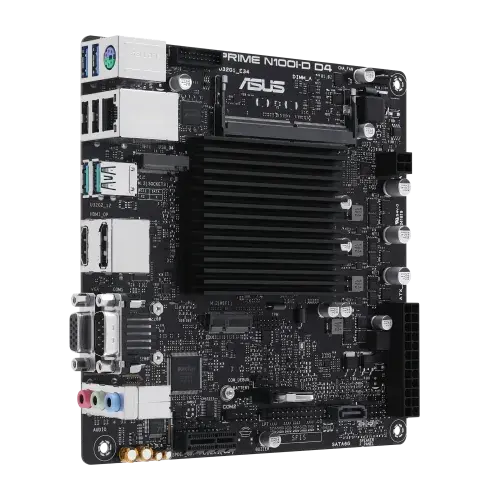

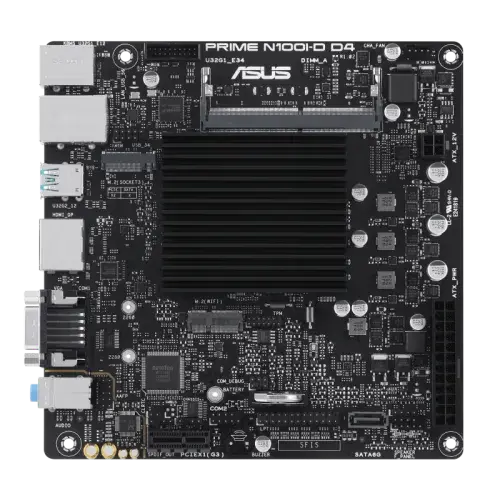

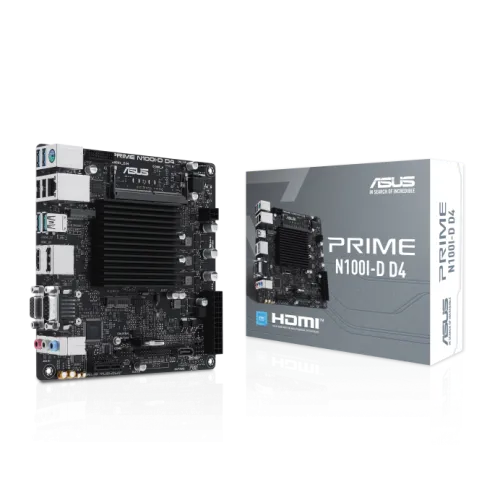

ASUS PRIME N100I-D D4 Mini-ITX Motherboard
Quick Details
- Model: PRIME N100I-D D4
- Supported CPU: Onboard Intel Processor N100
- Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4
- Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort
- Features: 1 x Realtek 1Gb Ethernet
13,500৳
0.0৳
| Basic Information | |
| Supported CPU | Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | 1 x PCIe 3.0 x1 slot |
| Memory | |
| Type | DDR4 |
| Slots | 1 x SO-DIMM |
| Supported Memory | 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module. |
| Maximum Memory | Max. 16GB |
| Graphics | |
| Graphics | 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1. |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| Display Port (s) | 1 x DisplayPort |
| VGA (s) | 1 x VGA port |

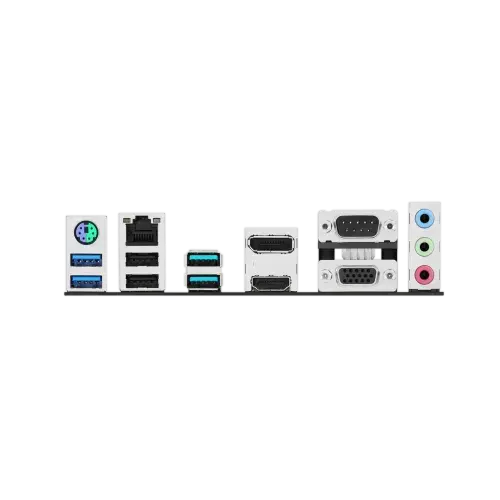

| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth. |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Supported Storage | Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x S/PDIF out header 1 x SPI TPM header (14-1pin) 1 x Speaker Header 1 x System Panel connector |
| Others | |
| Special Features | Proven Quality - ESD Guards - LANGuard - Overvoltage Protection - Stainless-Steel Back I/O ASUS Q-Design - Q-LED Core ASUS Thermal Solution - CPU heatsink design |
| Bundled Software | ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus PRIME N100I-D D4 Mini-ITX Motherboard
The Asus PRIME N100I-D D4 Mini-ITX motherboard is a low-power, fan-less solution designed for the Intel Processor N100, combining essential features and connectivity options to support various computing needs. It is equipped with a PCIe 3.0 x1 slot for additional expansion capabilities and offers versatile display outputs including DisplayPort, HDMI, and VGA. For connectivity, the motherboard includes a rear USB 3.2 Gen 2 port for high-speed data transfer, front USB 3.2 Gen 1 ports, and a 1Gb Ethernet port for reliable wired network connections. Storage options are comprehensive, featuring a 16Gbps M.2 slot for ultrafast storage solutions and SATA 6 Gbps ports for traditional storage devices. The motherboard supports legacy applications with its M.2 WIFI slot and LPT and COM ports, which allow for easy integration of wireless networking. These ports are designed for industrial use. A CPU heatsink built to sustain system temperature without the need for extra fans is part of the cooling system, guaranteeing silent operation. It has a COM debug header for improved serviceability, which makes troubleshooting and support easier during the building and maintenance procedures. The PRIME N100I-D D4, a member of the ASUS Prime series, has a strong power architecture, extensive cooling choices, and intelligent tuning options for user-friendly software and firmware-based performance optimization. The Intel Processor N100's performance is optimized by this painstakingly designed motherboard, giving PC builders and do-it-yourselfers a dependable and flexible platform. This motherboard provides an optimal combination of necessary features and connectivity choices for creating a small home server, high-end desktop computer, or industrial PC.
