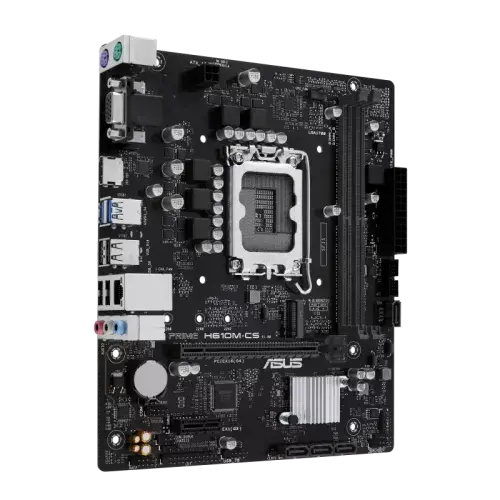

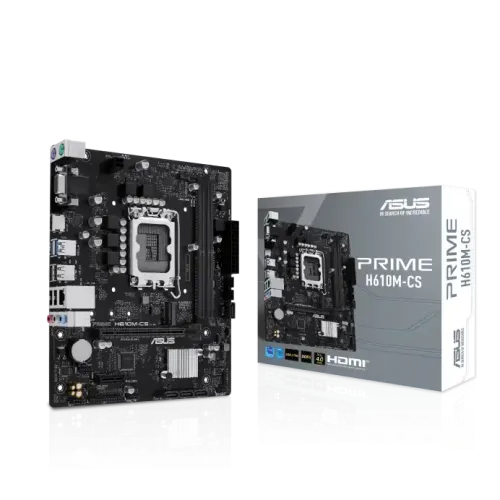

ASUS PRIME H610M-CS DDR5 mATX Motherboard
Quick Details
- Model: PRIME H610M-CS DDR5
- Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
- Supported Memory: 2 x DIMM, Max. 96GB, DDR5
- Graphics Output: 1 x VGA, 1 x HDMI
- Features: 1 x Realtek 1Gb Ethernet
12,000৳
0.0৳
| Basic Information | |
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel H610 Chipset |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
| Expansion Slots | |
| PCI | Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
| M.2 Socket | 1 x M.2 slot |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM |
| Supported Memory | 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 96GB |
| Graphics | |
| Graphics | Supports 4K@60Hz as specified in HDMITM 2.1. |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| VGA (s) | 1 x VGA port |
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x VGA port 1 x HDMITM port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard |
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 years warranty |
Description
Asus PRIME H610M-CS DDR5 mATX Motherboard
The Asus PRIME H610M-CS DDR5 mATX motherboard stands out for its robust feature set and versatility, making it a great choice for both new builds and upgrades. Built with an Intel LGA 1700 socket, it is fully compatible with the latest 13th and 12th Gen Intel processors, providing you with the flexibility to harness the power of cutting-edge technology for various computing needs. This Asus H610 Motherboard is its comprehensive cooling solution. It includes a dedicated PCH (Platform Controller Hub) heatsink designed to manage heat efficiently and maintain stable performance during intense computing tasks. This cooling solution is crucial for ensuring that your system runs smoothly and reliably, even when under heavy load. The PRIME H610M-CS excels with its support for PCIe 4.0, which offers faster data transfer rates compared to previous generations, enabling quicker access to storage and peripherals. The H610 motherboard also features a 32Gbps M.2 slot for high-speed SSDs, enhancing overall system responsiveness and boot times. For network connectivity, it includes Realtek 1 Gb Ethernet, which provides a stable and reliable internet connection, essential for both gaming and professional tasks. Additionally, it supports USB 3.2 Gen 1, allowing for high-speed data transfer and seamless connection of various peripherals. To ensure long-term durability and system protection, the PRIME H610M-CS incorporates Asus’s 5X Protection III technology. This advanced protection suite includes safeguards against overvoltage, electrostatic discharge (ESD), and other potential electrical issues. The motherboard's enhanced components and circuitry help prevent damage and ensure stable operation, contributing to a more reliable and secure computing experience. The Asus PRIME H610M-CS DDR5 mATX motherboard offers a well-rounded combination of performance, connectivity, and protection features, making it a solid foundation for any modern PC build or upgrade.
