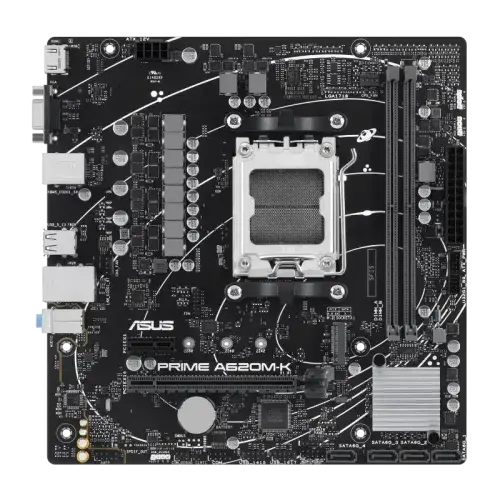

ASUS PRIME A620M-K AM5 mATX Motherboard
Quick Details
- Model: PRIME A620M-K
- Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 96GB, 7200+(OC)
- Graphics Output: 1x HDMI, 1 x VGA
- Features: 1 x Realtek 1Gb Ethernet
13,500৳
0.0৳
| Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD A620 Chipset |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | micro-ATX Form Factor 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| Expansion Slots | |
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD A620 Chipset 1 x PCIe 3.0 x1 slot |
| Memory | |
| Type | DDR5 |
| Slots | 2 x DIMM slots |
| Supported Memory | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) |
| Maximum Memory | Max. 96GB |
| Graphics | |
| Graphics | 1 x VGA port 1 x HDMI port |
| Connector & Ports | |
| HDMI | 1x HDMI |
| VGA (s) | 1 x VGA port |
| USB (s) | Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 1Gb Ethernet |
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio | 3 x Audio jacks |

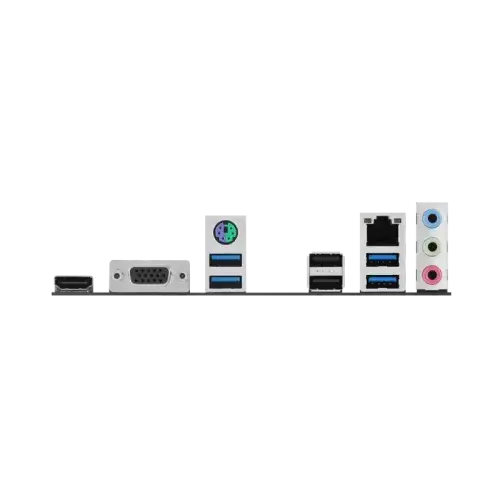

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Others | |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
Description

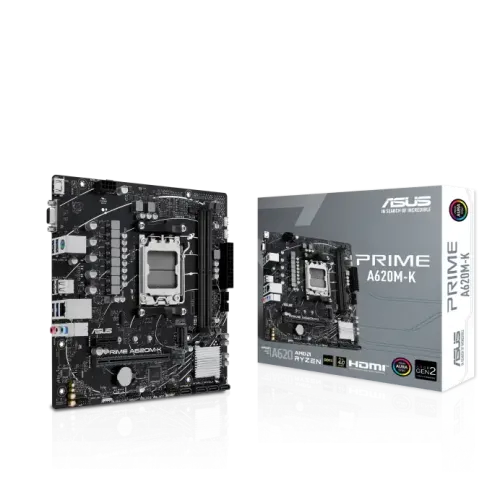

Asus PRIME A620M-K AM5 mATX Motherboard
The Asus PRIME A620M-K AM5 mATX Motherboard is designed with the future of AI computing in mind, offering the power and connectivity required for demanding applications. It features an AM5 socket, making it compatible with AMD Ryzen Desktop Processors, ensuring support for the latest generation of processors. The motherboard boasts ultrafast connectivity options, including PCIe 4.0 for high-speed data transfer, a 64Gbps M.2 slot for rapid storage solutions, Realtek 1Gb Ethernet for reliable networking, and USB 3.2 Gen 1 Type-A for versatile peripheral connectivity. To keep your system running optimally, the motherboard includes comprehensive cooling solutions with a PCH heatsink and Fan Xpert technology. Additionally, it features Aura Sync RGB lighting, with onboard Addressable Gen 2 headers and an Aura RGB header, allowing for seamless synchronization of RGB LED strips with other Aura Sync-capable hardware. The Asus PRIME A620M-K also enhances communication quality with its two-way AI noise cancelation, which reduces background noise from both the microphone and audio output, ensuring crystal-clear communication during gaming sessions or video conferences.
