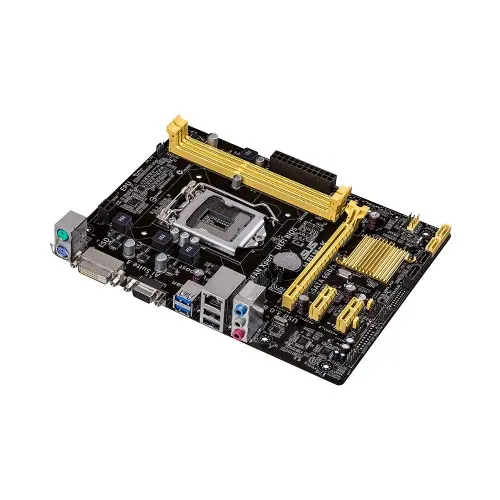

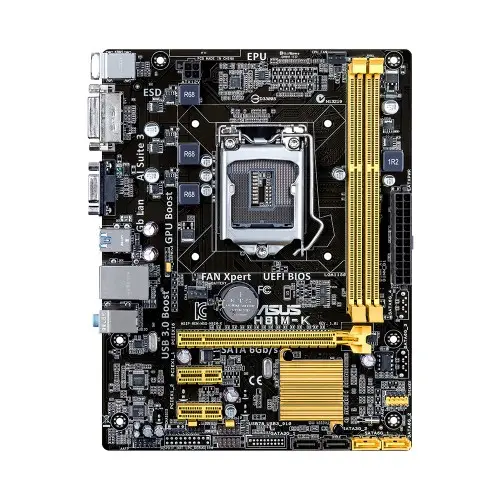

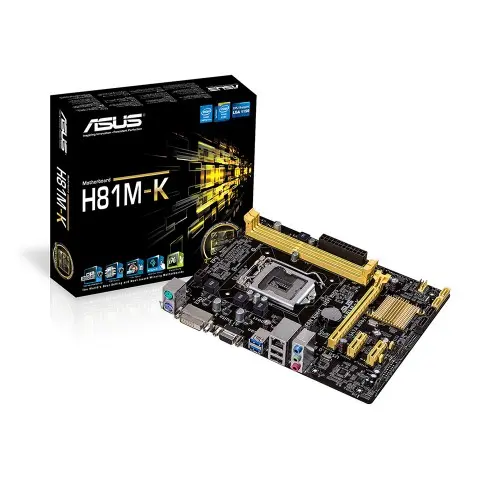

ASUS H81M-K 4th Gen Motherboard
Quick Details
- Model: H81M-K
- Intel Socket 1150 for 4th Generation Core i7/i5/i3/Pentium/Celeron Processors
- 2 x DIMM, Max. 16GB, DDR3 Non-ECC, Un-buffered Memory
- New UEFI BIOS & USB 3.0 Boost (UASP Support)
- AI Suite 3-One-stop access to innovative ASUS features
10,000৳
0.0৳
| Basic Information | |
| Supported CPU | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Chipset | Intel H81 |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | uATX Form Factor 8.9 inch x 6.9 inch ( 22.6 cm x 17.5 cm ) |
| Audio | Realtek ALC887/897 8-Channel High Definition Audio CODEC - Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| Expansion Slots | |
| PCI | 1 x PCIe x16 2 x PCIe 2.0 x1 |
| Memory | |
| Type | DDR3 |
| Slots | 2 x DIMM |
| Supported Memory | 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Maximum Memory | Max. 16GB |
| Graphics | |
| Graphics | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Max Shared Memory | 1024 MB |

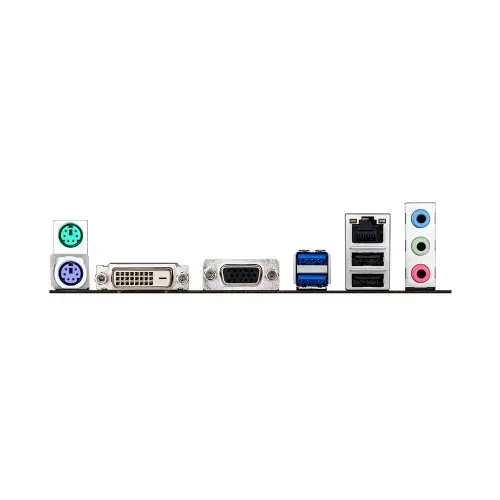

| Connector & Ports | |
| D-Sub (s) | 1 x D-Sub |
| DVI-D (s) | 1 x DVI |
| USB (s) | Intel H81 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue) Intel H81 chipset : 6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board) |
| LAN Port (s) | Realtek 8111G, 1 x Gigabit LAN Controller(s) |
| Supported Storage | Intel H81 chipset : 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology |
| Audio | 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 2 x SATA 6Gb/s connector(s) 2 x SATA 3Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x Clear CMOS jumper(s) |
| Others | |
| Special Features | ASUS EPU : - EPU ASUS Exclusive Features : - GPU Boost - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface - Network iControl - USB 3.0 Boost - Disk Unlocker ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 ASUS Q-Design : - ASUS Q-Slot |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
Asus H81M-K 4th Gen Motherboard
The Asus H81M-K 4th Gen Motherboard comes with the Intel H81 chipset is a single-chipset design that supports socket LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. This motherboard supports Intel 4th generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1150 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express lanes. It natively supports up to two USB 3.0 ports for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel® H81 chipset also supports iGPU functionality, letting users enjoy the latest Intel integrated graphics performance. ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. The Asus H81M-K comes with 3 years of warranty.
