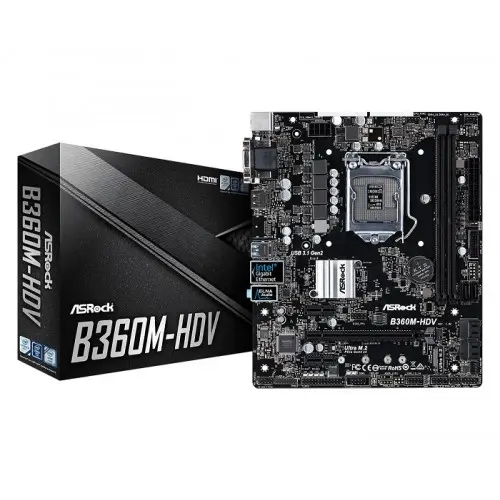

ASRock B360M-HDV 8th Gen DDR4 Motherboard
Quick Details
- Model: Asrock B360M-HDV
- Chipset Intel® B360
- Supports 8th Gen Intel (Socket 1151)
- Supports DDR4 2666
- Gigabit LAN 10/100/1000 Mb/s
8,500৳
0.0৳
| Basic Information | |
| Supported CPU | - Supports 8th Generation Intel® Core™ Processors (Socket 1151) - Supports CPU up to 95W - 5 Power Phase design - Supports Intel® Turbo Boost 2.0 Technology |
| Chipset | Intel® B360 |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Form Factor | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design OS |
| Expansion Slots | |
| PCI | 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* 2 x PCI Express 3.0 x1 Slots (Flexible PCIe) |
| M.2 Socket | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** |
| Memory | |
| Type | Dual Channel DDR4 Memory Technology |
| Slots | - 2 x DDR4 DIMM Slots 15μ Gold Contact in DIMM Slots |
| Supported Memory | Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| Maximum Memory | 32 GB |
| Graphics | |
| Graphics | -Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics -DirectX 12 - HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only) - Three graphics output options: D-Sub, DVI-D and HDMI - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with DVI-D and HDMI Ports - Supports 4K Ultra HD (UHD) playback with HDMI Port |
| Connector & Ports | |
| HDMI | 1 x HDMI Port |
| USB (s) | -2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) |
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug* - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Audio | - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps |

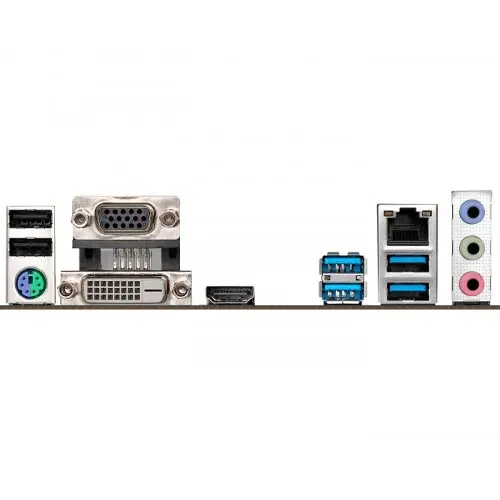

| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software |
| Warranty Information | |
| Manufacturing Warranty | 03 years |
Description
Asrock B360M-HDV micro ATX 8th generation Intel core processors supported dual channel DDR4 maximum 32GB memory with Intel B360 chipset motherboard has the capability of 1 Ultra M.2 (PCIe Gen3 x4 & SATA3) and 1 PCIe 3.0 x16, 2 PCIe 3.0 x1 slots as interface. The Intel UHD graphics of this board supports 4K Ultra HD view with HDMI, DVI-D, D-Sub output options. This exclusive directX 12 motherboard has the facility of 1 HDMI, 6 SATA3, 2 USB 3.1 Gen1 (Front), 4 USB 3.1 Gen2 10Gb/s (Rear) ports, Intel Gigabit LAN and 7.1 CH HD Realtek audio with ELNA audio caps connectivity.
Buy AsRock 5 power phase motherboard at best price in the market of Rangpur, Chattagram, Dhaka, Rajshahi & Khulna. Now you can enjoy all latest mainboards for your rig at your hometown. All you need to do is to order from our site and our online delivery channel will arrange the delivery at any location inside Bangladesh.
