ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard
Quick Details
- Model: AK-H61M EL
- Supported CPU: Intel Socket 1155 for Core i7/ i5/ i3/Pentium/Celeron
- Supported RAM: 2x DIMM, DDR3 1600/ 1333/1066MHz
- Graphics Output: 1 x HDMI, 1 x VGA Port
- Features: Realtek 8105E/8111E 100/1000 Mbps
4,800৳
0.0৳
| Basic Information | |
| Supported CPU | Intel Socket 1155 for Intel Core i7/Core i5/Core i3/Pentium/Celeron Processors |
| Chipset | Intel H61 Chipset |
| Form Factor | Micro-ATX (18.5 x 16.8 cm) |
| Audio | Realtek 6 Channel Audio Codec |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot 1 x PCI E x1 slot |
| Memory | |
| Type | DDR3 |
| Slots | 2 x Memory Slots |
| Supported Memory | 1600/ 1333/1066 memory |
| Graphics | |
| Graphics | Intel Graphics Media Accelerator X4500 HD |
| Connector & Ports | |
| HDMI | 1 x HDMI port |
| VGA (s) | 1 x VGA port |
| USB (s) | 6 x USB 2.0 port |
| LAN Port (s) | Realtek 8105E/8111E 100/1000 Mbps (Optional) |
| Supported Storage | 4 x SATA port |
| Audio | 3 x Audio jack |
| Warranty Information | |
| Manufacturing Warranty | 2 Year |
Description

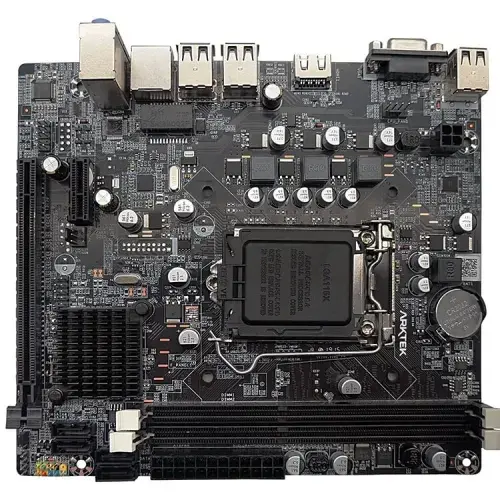

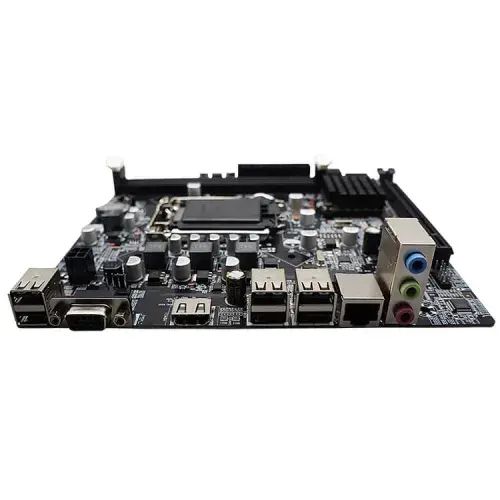

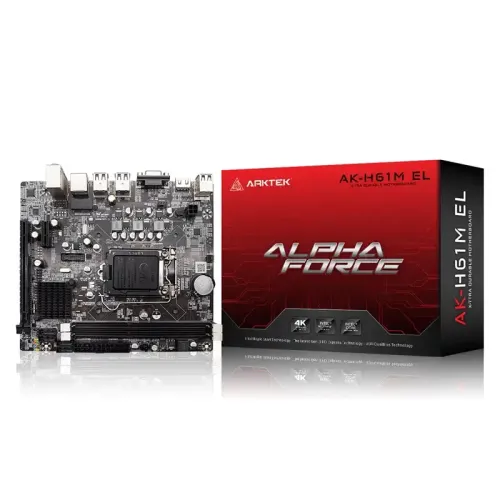

ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard
The ARKTEK AK-H61M EL 3rd Gen Micro-ATX Motherboard is designed to support Intel Core i7/Core i5/Core i3/Pentium/Celeron processors using an Intel Socket 1155. It features the Intel H61 chipset and comes with integrated Intel Graphics Media Accelerator X4500 HD for on-board graphics capabilities. The motherboard supports DDR3 memory at speeds of 1600/1333/1066, with two DIMM slots available for memory expansion. It offers Realtek 6 Channel Audio Codec for audio output and Realtek 8105E/8111E 100/1000 Mbps LAN connectivity (optional). The AK-H61M EL provides four SATA ports for connecting hard drives or solid-state drives. The back panel I/O ports include one VGA port, one HDMI port, six USB 2.0 ports, one LAN jack, and three audio jacks. It offers one PCI Express x16 slot for expansion cards and one PCI Express x1 slot for additional peripherals.
