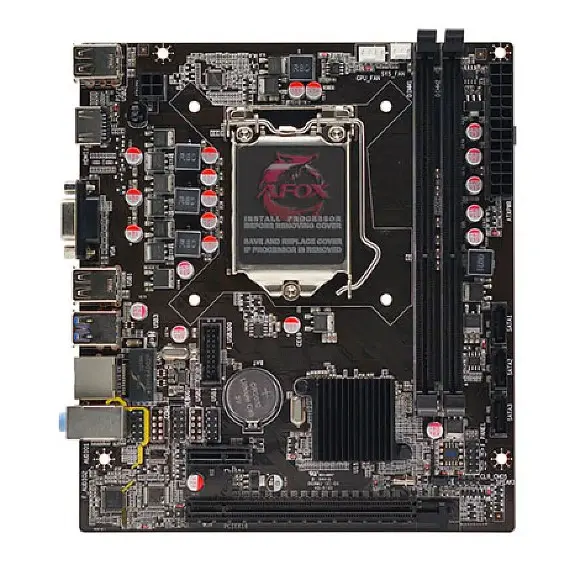

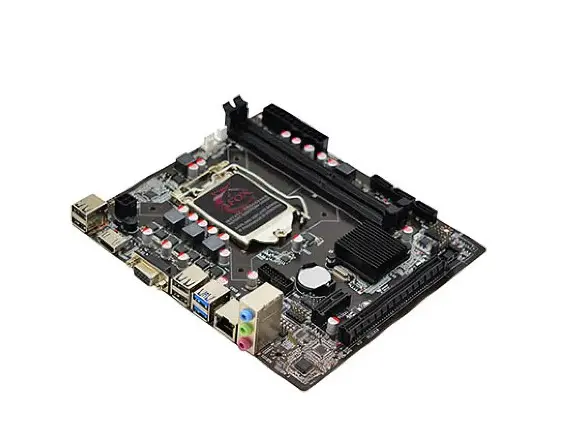

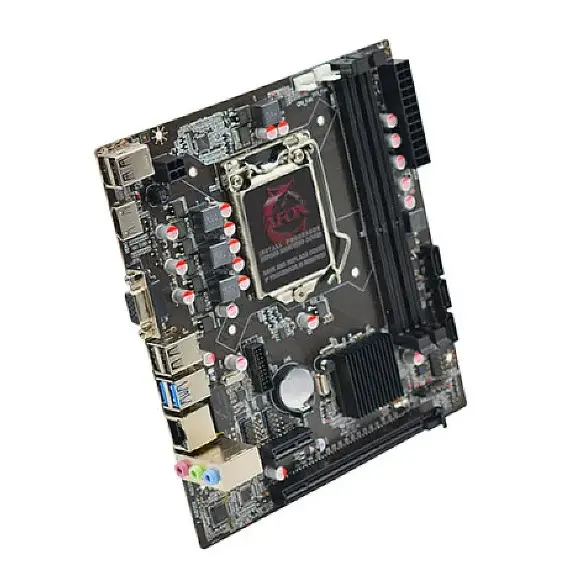

AFOX IH61-MA5 DDR3 MICRO-ATX INTEL MOTHERBOARD
Quick Details
Intel H61 chipset with LGA 1155 socket support
Dual‑channel DDR3 RAM support
1 × PCIe x16 + expansion slots for flexible upgrades
SATA ports for HDD/SSD storage
Onboard video output for integrated graphics (with compatible CPU)
5,500৳
0.0৳
| Model | IH61‑MA5 |
| Chipset | Intel H61 |
| CPU Socket | LGA 1155 |
| Supported CPUs | Intel 2nd Gen (Sandy Bridge) / 3rd Gen (Ivy Bridge) Core i7 / i5 / i3 / Pentium / Celeron |
| Memory Type | DDR3 SDRAM |
| Memory Slots | 2 × DDR3 DIMM |
| Max Memory | 16 GB (Dual‑channel) |
| Memory Speed | 1066 / 1333 / 1600 / 2133 MHz (depending on CPU / RAM) |
| Expansion Slots | 1 × PCIe x16, other PCIe/PCI for add‑ons |
| Storage Interfaces | SATA II / SATA III ports (for HDDs/SSDs) |
| Onboard Video Output | VGA, DVI or HDMI (depending on version) — works with CPU iGPU |
| Audio / LAN | Onboard audio and Ethernet LAN support |
| Form Factor | Micro‑ATX (approx. 170 × 190 mm) |
| Rear I/O Ports | USB, LAN (RJ45), audio jacks, video out, PS/2 (varies by version) |
Description
The AFOX IH61‑MA5 motherboard is a compact and budget‑friendly Micro‑ATX board built around the Intel H61 chipset — suitable for building office desktops, home PCs, or light‑use systems with 2nd or 3rd generation Intel processors (LGA 1155). Thanks to dual-channel DDR3 memory support and up to 16 GB RAM capacity, it can handle everyday computing tasks, browsing, media playback, and productivity software smoothly. The PCIe x16 slot allows a dedicated graphics card if you need more graphics power than the CPU’s integrated GPU offers. With SATA support for HDDs or SSDs, storage expansion is straightforward. Onboard video, audio, and LAN make it usable out-of-the-box for basic systems. Its Micro‑ATX form factor keeps it small and easy to fit into compact cases, making IH61‑MA5 a practical foundation for a simple, cost‑effective desktop system.
