 UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard
 UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard

UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard

0.0
(0)
Special Price:
5,400৳
Regular Price:
0৳
MIT Point:
0
Status:
In Stock
Product ID:
00283

Quick Details

Platform: Intel Platform
Chipset:  Intel H81
Form Factor : Micro ATX
CPU Socket Type: LGA 1150

0.0৳

EMI Price*
Start form 3210৳/month. For Discount Price
Check here to view 27 bank emi plans
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পণ্যের স্টক ও ডেলিভারী সম্পর্কে জেনে নেয়ার জন্য অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ার কারনে যেকোনো মুহূর্তে যেকোনো প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Processor
Supported CPU


Intel Core i7/i5/i3/Pentium/Celeron LGA1150 (support Intel 22nm processor)
Mainboard
Chipset


Intel H81
Memory
Memory Size


16 GB
Memory Slot


2 x DDR3 memory slots
Memory


DDR3 1600/1333/1066 memory* (actual memory data transfer speed depends on processor type and memory module)
Networking & Connectivity
LAN


Onboard Realtek 8111H Gigabit network card; 1 x M.2 wifi interface
Audio & Microphone
Audio


Onboard Realtek ALC897 high-fidelity audio independent sound card
Ports
Output Interface


1 x DisplayPort display output; 1 x HDMI display output; 1 x VGA display output
PCI Card Slot


1 x PCI-E x 16 graphics card slot; 1 x PCI-E x 1 slot
Interface


4 x SATA3.0 6Gb/s


M.2 Interface: 1 x M.2 slot, supports 2242/2260/2280 type storage devices
Power Connector


24pin+8pin
USB


2 x USB 3.0 ports at the rear; 4 x USB 2.0 ports; 1 x USB 3.0 header at the front, 2 USB 3.0 ports can be expanded; 1 x USB 2.0 header, 2 USB 2.0 ports can be expanded
Others
Other Features

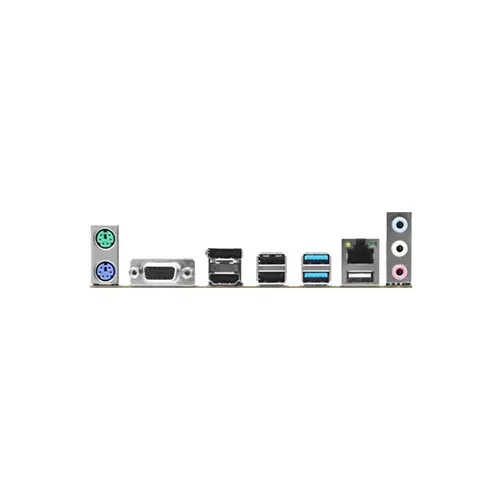

1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x RJ45 network port; 3 x 3.5mm audio ports
Physical Specification
Form Factor


M-ATX
Dimension


170mm x 220mm
Technical Info
Brand


UNIKA Shuangmin
Platform


Intel Platform
Warranty Information
Warranty


3 Years

Description

UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard in Bangladesh


Technical Details

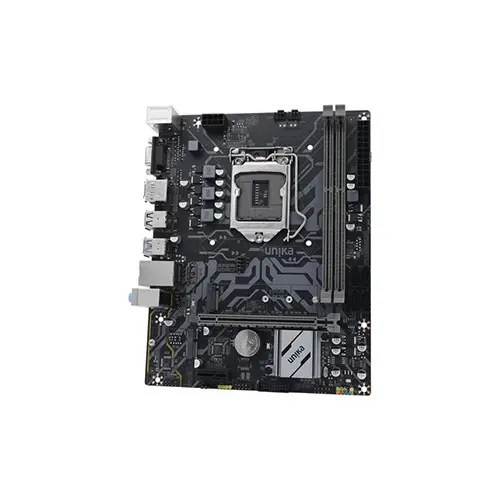

The UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard supports Intel's 4th generation Core i7, i5, i3, Pentium, and Celeron processors with an LGA1150 socket. Built on the Intel H81 chipset, it features two DDR3 memory slots supporting speeds of 1600, 1333, and 1066 MHz, with a maximum capacity of 16 GB. The motherboard includes one PCI-E x16 slot for graphics cards and one PCI-E x1 slot. For storage, it provides four SATA3.0 ports and one M.2 slot that supports 2242/2260/2280 type storage devices. Connectivity options are robust, with rear USB 3.0 and 2.0 ports, as well as headers for additional USB ports. Display outputs include DisplayPort, HDMI, and VGA. It also has an onboard Realtek 8111H Gigabit network card and Realtek ALC897 high-fidelity audio chip. Additional features include PS/2 ports, RJ45 network port, and various audio ports.


Availability and Usability

The UNIKA UN-H81M PRO M.2 V1.0 DDR3 Micro ATX Motherboard is available at Tech Land BD, providing a reliable and efficient solution for building or upgrading PCs. This motherboard's compatibility with Intel's 4th generation processors and comprehensive connectivity options make it suitable for both personal and professional use. For those searching for the best "UNIKA UN-H81M PRO M.2 V1.0 DDR3 4th Gen Micro ATX Motherboard Price in BD," Tech Land BD offers competitive pricing and excellent customer service.


Highlights

  • Supports Intel 4th Gen Core i7/i5/i3/Pentium/Celeron processors
  • DDR3 memory slots with speeds up to 1600 MHz
  • PCI-E x16 and M.2 slots for graphics and storage
  • Multiple display outputs: DisplayPort, HDMI, VGA
  • Onboard Realtek Gigabit network and high-fidelity audio
