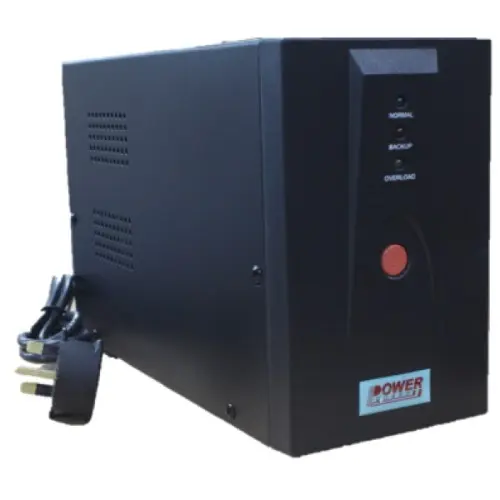

Power Guard 650VA PS Offline UPS (Metal Body)
Quick Details
- Model: 650VA PS
- Output Voltage (V): 220/230 VAC +/-10%
- Frequency (Hz - kHz): 50/60Hz +/-5%
- Input Voltage (V): 145-280VAC
- Load Capacity: 390W
| Main Feature | |
| Load Capacity | 390W |
| Input Voltage | 145-280VAC |
| Output Voltage | 220/230VAC+/-10% |
| Frequency (Battery Mode) | 50/60Hz+/-5% |
| Battery | Intelligent Battery Management Efficiency: To Battery Mode 83% Type Lead-Acid Maintenance-Free DC Bus 12V 8.2Ah Number 1 PCS Recharge time 6 hours up to 90% capacity |
| Alarm | Beeping Alarm |
| Indications | LED indicator |
| Output Features | |
| Backup Time | Back up time 05-20 mins (Depending on load) |
| Transfer Time | 2-4 ms Typical |
| Manufacture Warranty | |
| Warranty | 1 year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Power Guard 650VA PS Offline UPS (Metal Body)
The Power Guard 650VA PS Offline UPS features Automatic voltage regulation(AVR), High/ Low Voltage Protection, Overload/ Short Protection Cool. This Power Guard UPS featured an input voltage range of 145-280 VAC and a frequency of 50/60 Hz +/- 5%. It offers an output voltage of 220/230 VAC +/- 10%. It has a transfer time of 2~4 ms (Typical) and a Pure Sine Wave. This Power Guard 650VA CS UPS has an LED Indicator. The Power Guard 650VA UPS is equipped with a Lead-Acid Maintenance-Free battery. It takes a recharge time of 6 hours up to 90% capacity. It can deliver a backup time of 35-40 mins (Depending on load). The Power Guard 650VA PS Offline UPS comes with a 1-year warranty.
