- ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Portable Mini PC
ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Portable Mini PC
Quick Details
- Model: ExpertCenter PN53 (Barebone)
- Processor: AMD Ryzen 5 7535H: 6C/12T, 3.30/4.55GHz (35W)
- RAM: 32GB DDR5-4800 SO-DIMM x 2 (Support), Graphic: Integrated Radeon Graphics
- Storage: 256GB~2TB M.2 2280 PCIe 4.0 x 4 SSD + 1TB 2.5" SATA HDD (Support)
- WLAN: Intel Wi-Fi 6E (Gig+), Bluetooth 5.2, LAN: 2.5G Ethernet, 10/100/1000/2500 Mbps
| Basic Information | |
| Processor | AMD Ryzen 5 7535H: 6C/12T, 3.30/4.55GHz (35W) |
| RAM | 32GB DDR5-4800 SO-DIMM x 2 (Support) |
| Graphics Card | Integrated Radeon Graphics |
| Storage | 256GB~2TB M.2 2280 NVMe PCIe 4.0 x 4 SSD 1TB 2.5" SATA HDD (Support) |
| Power Supply | 19Vdc, 6.32A, 120W Power Adapter |
| Network & Wireless Connectivity | Intel Wi-Fi 6E (Gig+), Bluetooth 5.2 2.5G Ethernet, 10/100/1000/2500 Mbps |
| Input Devices | |

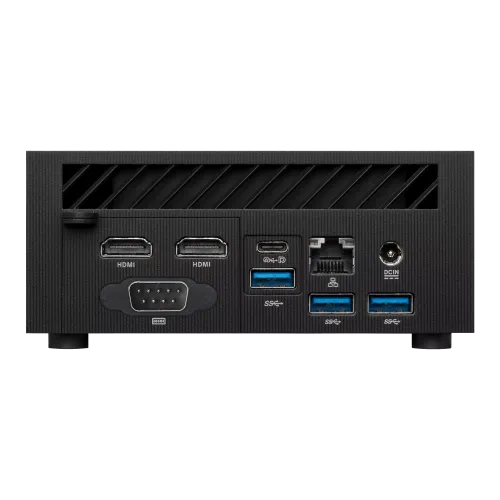

| External I/O Ports | Front I/O Ports 1 x USB 4 Type-C (w/ DP output) 2 x USB 3.2 Gen1 Type-A 1 x Audio Jack 1 x Kensington Lock(side) Back I/O 1 x USB 4 Type-C (Support DP1.4, PD input*) 3 x USB 3.2 Gen1 2 x HDMI 2.1 (Up to 4K@60Hz) 1 x Configurable Port (VGA) 1 x 2.5G RJ45 LAN 1 x DC-in 1 x Padlock ring |
| Physical Details | |
| Dimension | 120 x 130 x 58 mm |
| Weight | 0.75 kg(barebone) |
| Color | Black |
| Warranty Information | |
| Warranty | 3 years |
Description
ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Portable Mini PC
The ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Portable Mini PC is not light on performance. This ASUS Mini PC, powered by an AMD Ryzen 5 7535H CPU with 6 cores and 12 threads, a base frequency of 3.30GHz and a boost clock of 4.55GHz, provides exceptional multitasking capabilities while remaining energy efficient at 35W TDP. The integrated Radeon Graphics provides smooth images for everyday tasks, light gaming, and multimedia applications. The ASUS ExpertCenter PN53 (Barebone) Mini PC offers up to 32GB of DDR5-4800 dual-channel memory, ensuring quick responsiveness for demanding applications. The ASUS Portable Mini PC offers consumers the option of installing a high-speed M.2 2280 NVMe PCIe 4.0 x4 SSD with capacities ranging from 256GB to 2TB, as well as an extra 1TB 2.5-inch SATA HDD for increased capacity. The ASUS Mini PC's connectivity is a big asset, with Intel Wi-Fi 6E with Bluetooth 5.2 and a 2.5G Ethernet connector providing consistent wired and wireless performance. The front I/O ports feature one USB 4 Type-C with DisplayPort output, two USB 3.2 Gen1 Type-A ports, an audio jack, and a Kensington lock for further protection. On the back, the ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Portable Mini PC has another USB 4 Type-C connector with DP1.4 and PD input, three USB 3.2 Gen1 connections, dual HDMI 2.1 ports with 4K at 60Hz, a customizable VGA port, 2.5G LAN, DC-in, and a padlock ring. Its compact dimensions of 120 x 130 x 58 mm allow for outstanding portability and space efficiency. The ASUS ExpertCenter PN53 (Barebone) Ryzen 5 7535H Mini PC, powered by a 120W adaptor, is suitable for office productivity, digital signage, home entertainment, and commercial environments that require dependability and strong performance in a small form factor.
