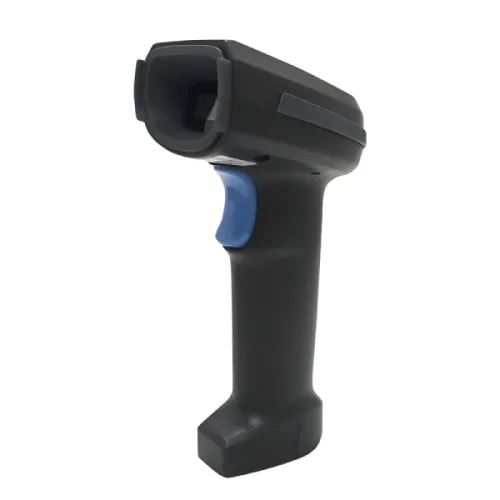

Winson WNI-7330DPM 2D Handheld Barcode Scanner
Quick Details
- Model: WNI-7330DPM
- Image Sensor: Rolling Shutter
- Sensor Resolution: 640×480 Pixels
- Capture all 1D code and 2D code
- Interface: USB HID KEYBOARD/USB VCP
6,200৳
0.0৳
| Basic Information | |
| Type | 1D/2D wired barcode scanner |
| Resolution | 640×480 Pixels |
| Interface | USB HID KEYBOARD/USB VCP |
| Speed | 120FPS |
| Others | Image Sensor: Rolling shutter Decode Capability: 1D: Codabar、Code11、Code128、ISBT128、Code32、Code39、TLC39、 Code93/93i、 BC412、UK Plessey、Anker Plessey、EAN-13、EAN-8、GS1、 MSI、Telepen、 Pharma、PatchCode、UPC-A、UPC-E、2 fo 5(China Post、 Interleaved 2 of 5、Matrix 2 of 5、NEC 2 of 5、Straight 2 of 5 iATA、Straight 2 of 5 Industrial)、Korea Post、China Post、Australia Postal、Royal INFOMAIL、 Japan Postal、KIX、PLANETCODE、POSTNET、Britain Postal、UPU、USPS 4STATE 2D:Aztec Code、Han Xin、Data Matrix、MaxiCode、QR、Micro QR、rMQR、 Dot Code、Grid Matrix、Codablock A、Codablock F、PDF417、Micro PDF417. |
| Warranty | 1 year |
| External Features | |
| Dimensions | 90mm*70mm*180mm(L*W*H) |
| Weight | 180g |
| Color | Black |
Description
Winson WNI-7330DPM 2D Handheld Barcode Scanner
The Winson WNI-7330DPM 2D Handheld Barcode Scanner has a rolling shutter image sensor that can decode at an amazing 120 frames per second. And has resolution of 640 x 480 pixels. Even in difficult lighting situations, its green targeting light and white LED light source allow for effective scanning. For smooth system integration, the portable barcode scanner supports a number of interfaces, such as USB VCP and USB HID Keyboard. Featuring a broad scanning angle of ±55°, ±70°, and ±360° for pitch, skew, and tilt, the Winson WNI-7330DPM 2D Handheld Barcode Scanner provides remarkable versatility in barcode scanning. It can efficiently scan a range of barcode sizes thanks to its 40.9° horizontal and 31.2° vertical field of view. For small and low-contrast codes, the Winson Barcode Scanner ensures dependable performance by reading barcodes with a minimum resolution of 5 mil and a PCS value of 15% or above. Additionally, it provides unique data output for improved usability and supports a number of languages. The Winson WNI-7330DPM 2D Barcode Scanner is small and easy to use, and it guarantees accurate and effective barcode scanning for a variety of applications. This device provides the speed, precision, and versatility needed for contemporary processes, regardless of whether you need to process standard 1D barcodes or complicated 2D barcodes.
