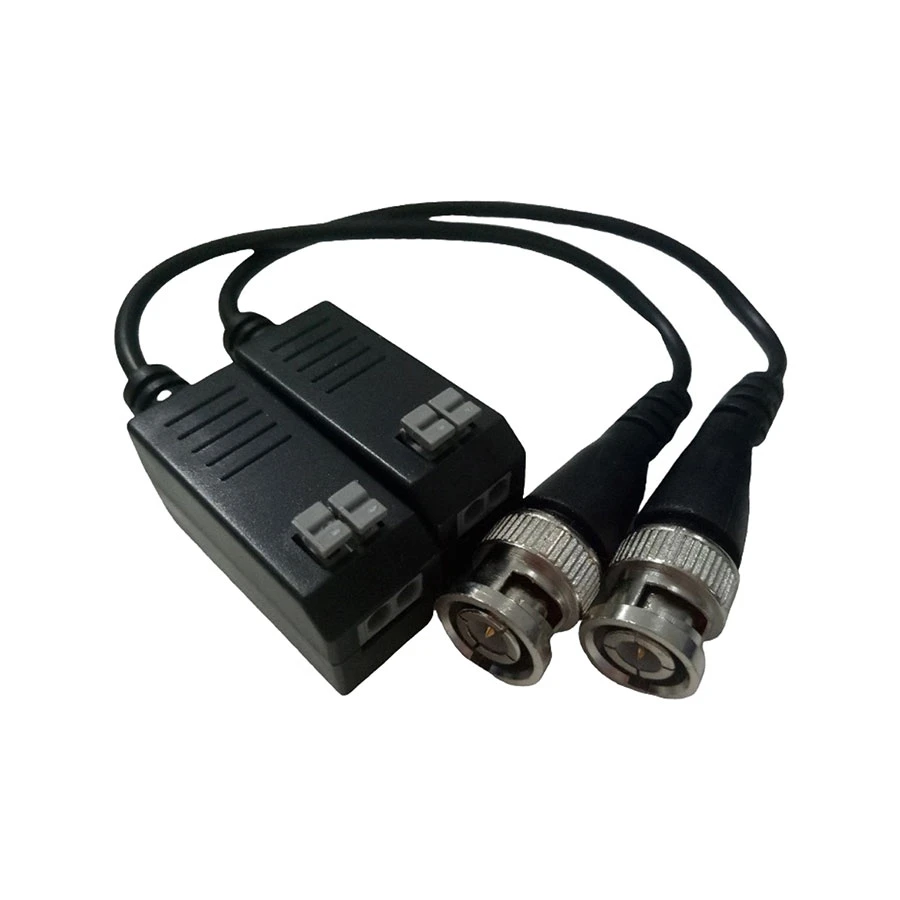

Hikvision DS-1H18S/E Video Baluns Connector

Features of Hikvision DS-1H18S/E CC Camera Accessories In Bangladesh

Brand - Hikvision, Model - Hikvision DS-1H18S/E, Type - Video Baluns Connector, Use for - CC Camera, Body Material - ABS, Dimensions (WxHxD) - 39 x 19 x 17 mm, Weight - 38.6 gm, Color - Black, Feature - Transmits TVI signal via UTP cable, No power required, and only simplified project wiring needed, Plug and play, real-time transmission of high quality, stable CCTV HD video signal Compatible with HDTVI/HDCVI/AHD, Transmission distance (over Cat 5E/6): HDTVI/HDCVI/AHD 720P/300m (max) 1080p/250m (max), 3 MP/4 MP/5 MP: 200m (max), Others - Transmission Signal|: 1 channel, Category Type: UTP CAT 5E/ 6,  Coaxial Video Connector: BNC-M, Twisted-pair Video Connector: Push-terminal, Compa9ble Format: HDTVI/ HDCVI/ AHD,  Resolution: 720P/ 1080P/ 3MP/ 4MP/ 5MP, Ant-interference: >60db, ESD: 1a contact discharge electricity level3,1b air discharge electricity level3, Per: IEC61000-4-2, Coaxial Cable Connector: 2KV(common-code) Per:IEC61000-4-5, UTP Cable Connector: 2KV(different-code), 2KV(common-code), Per:IEC61000-4-5, BNC Male: 75 ohms, UTP Cable: 100 ohms, MTBF: >10000 h, Opera9ng Temperature: -10 to 55 Degree C,  Storage Temperature: -20-70 Degree C, Humidity: 0-95% (non-condensing)., Warranty - No Warranty, Country of Origin - China, Made in/ Assemble - China
