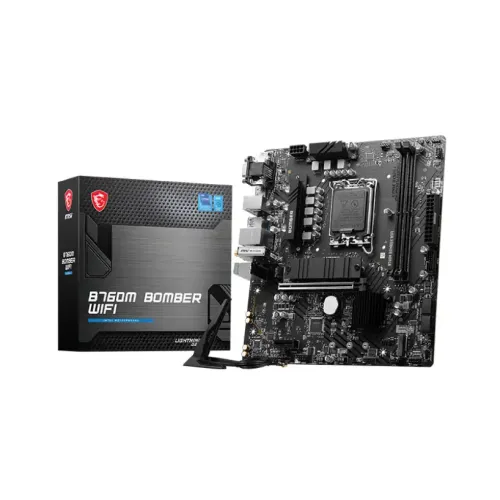

MSI B760M BOMBER WIFI mATX Motherboard
Quick Details
- Model: B760M BOMBER WIFI
- Supported CPU: 14th/ 13th/13th Gen Intel Processors (LGA1700)
- Supported RAM: 2x DDR5, Max 192GB 6400+MHz (OC)
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub
- Features: 2x M.2 slot, 2.5G LAN with Wi-Fi 6E
19,500৳
0.0৳
| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700 |
| Chipset | INTEL B760 |
| Form Factor | mATX 220mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Expansion Slots | |
| PCI | 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Memory | |
| Type | DDR5 |
| Slots | 2 |
| Supported Memory | Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 96GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
| Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| D-Sub (s) | 1x D-Sub |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
| Others | |
| Special Features | 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
Description
MSI B760M BOMBER WIFI mATX Motherboard
The MSI B760M BOMBER WIFI mATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It supports both 14th 13th and 12th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket, ensuring compatibility with a wide range of processors. The MSI B760M BOMBER WIFI Motherboard supports DDR5 memory with a dual-channel configuration, allowing for fast and efficient data transfer at speeds of 6400+MHz (OC). It features an enhanced power design with a 12+1 Duet Rail Power System, P-PAK, and 8-pin + 4-pin CPU power connectors, ensuring stable power delivery and optimal performance. The motherboard also incorporates Core Boost and Memory Boost technologies to enhance performance further. For improved thermals, the motherboard includes an extended heatsink and MOSFET thermal pads rated for 7W/mK, ensuring efficient heat dissipation. Additional choke thermal pads are also included to support high-performance systems and provide a reliable gaming experience. The MSI B760M BOMBER WIFI offers lightning-fast gaming experiences with a PCIe 4.0 slot, Lightning Gen 4 x4 M.2 slot with M.2 Shield Frozr, and Turbo USB 3.2 Gen 2 10G for high-speed data transfer. It also features a 2.5G LAN with Wi-Fi 6E solution, providing upgraded network connectivity for professional and multimedia use. The high-quality PCB is constructed with a 6-layer design using 2oz thickened copper for improved durability and performance. The MSI B760M BOMBER WIFI Motherboard offers Audio Boost technology, and delivers studio-grade sound quality for an immersive gaming experience.
